Fluorescent Penetrant Inspection: An Essential Technique For Surface Finishing In The Aerospace And Defense Industries

by | Dec 6, 2023

In the fast-paced and demanding industries of commercial aerospace, defense, space exploration, and satellite technology, ensuring the highest level of quality and safety in surface finishing is paramount. This is where Fluorescent Penetrant Inspection (FPI) takes center stage. In this technical guide, we will delve deeply into the world of FPI, covering its wide-ranging applications, critical safety precautions, essential system components, and distinguishing it from the Liquid Penetrant Inspection (LPI) method. Our aim is not only to provide a comprehensive understanding of FPI but also to help you achieve topical authority in the field of surface finishing for the most discerning industries.



What Is Fluorescent Penetrant Inspection?

Fluorescent Penetrant Inspection (FPI) is a widely used non-destructive testing (NDT) technique in the commercial aerospace, defense, space, and satellite industries. It is employed to detect surface defects, such as cracks, porosity, and other discontinuities, in various materials including metals, composites, and ceramics.



What Is Fluorescent Penetrant Inspection?



Elevate Your Aerospace Surface Finishing With Valence

Unlock Unmatched Benefits:

  • Complete Integration: Valence is the ONLY company that provides a seamless, end-to-end solution for aviation, defense, and space industries.
  • Trusted Partner: Join hands with the world’s largest independent aerospace surface finishing company, committed to earning your trust.
  • Excellence in Every Detail: Experience excellence at every step of your aerospace journey with Valence.

Dive into a New Era of Aerospace Surface Finishing!



Why Is Fluorescent Penetrant Inspection Important?

FPI plays a crucial role in ensuring the safety and reliability of critical components used in these industries. By identifying even the smallest surface flaws that are invisible to the naked eye, FPI significantly enhances the quality control process and helps prevent catastrophic failures or accidents.



How Does Fluorescent Penetrant Inspection Work?

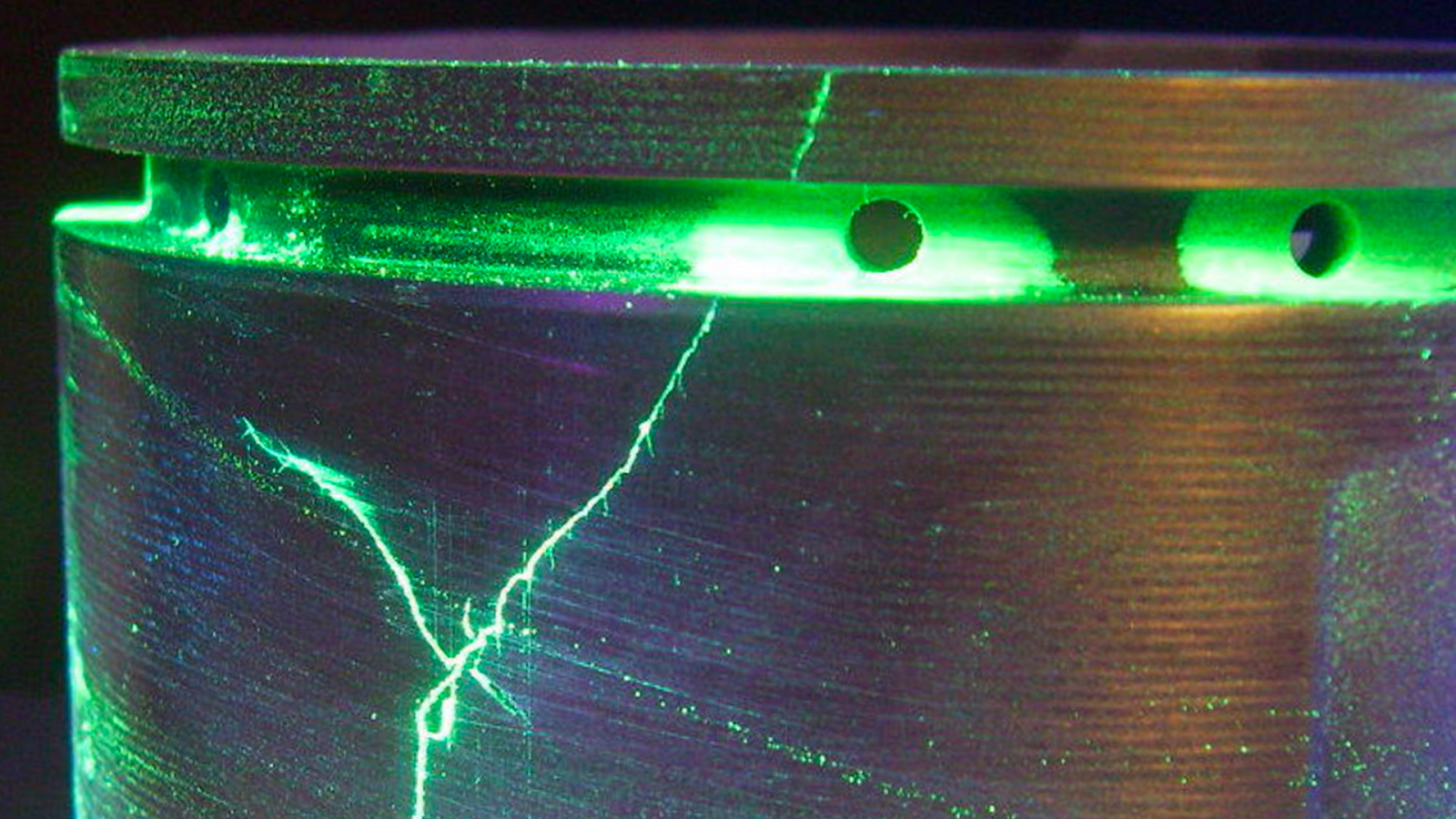

Fluorescent Penetrant Inspection operates on a meticulously engineered process. It begins with the application of a specialized fluorescent penetrant, which is drawn into any surface discontinuities due to capillary action. This method, being highly sensitive, allows for the detection of even minute defects, ensuring the highest level of quality assurance.



What Are The Benefits Of Fluorescent Penetrant Inspection?

Fluorescent Penetrant Inspection offers several advantages, including:



Enhanced Defect Detection

FPI can detect even the smallest cracks and discontinuities, ensuring a higher level of quality control.



Versatility

FPI can be used on a wide range of materials, making it suitable for various applications.



Cost-Effectiveness

FPI is a relatively economical testing method, especially when compared to more complex and time-consuming techniques like X-ray inspections or ultrasound testing.



Reduces Component Downtime

With FPI, inspections can be performed quickly, minimizing the time required for components to be out of service.



Easy Integration

FPI can be seamlessly integrated into existing production processes, minimizing disruption.



What Are The Alternatives To Fluorescent Penetrant Inspection?

While FPI is widely used, there are alternative NDT methods available, depending on the specific requirements and materials involved:

  1. Magnetic Particle Inspection (MPI): MPI is a technique that uses magnetic fields to detect surface and subsurface defects, primarily in ferromagnetic materials.
  2. Ultrasonic Testing (UT): UT relies on sound waves to detect flaws, such as cracks or voids, in various materials, including metals and composites.
  3. X-ray Inspection: X-ray techniques use electromagnetic radiation to identify internal defects in a component, making it particularly suitable for dense materials.



What Is A Fluorescent Penetrant Used For?

Fluorescent penetrant is used as a highly sensitive tool to detect and identify various surface defects in materials used in the commercial aerospace, defense, space, and satellite industries. It can reveal cracks, porosity, and other imperfections that are not visible to the naked eye. This allows manufacturers to ensure the quality and integrity of critical components, enhancing safety and reliability.



What Are The Key Applications Of FPI?

Fluorescent Penetrant Inspection (FPI) has extensive applications across industries, some of which include:

  • Aerospace: FPI is widely used to inspect turbine blades, engine components, landing gear, and structural parts of aircraft, ensuring the integrity of these critical components.
  • Defense: FPI plays a vital role in ensuring the quality and safety of firearms, ammunition, and other defense equipment.
  • Space and Satellite: FPI ensures the reliability of components used in satellites, space shuttles, rockets, and other space exploration systems, where any failure can have severe consequences.



What Safety Precautions Should Be Taken During FPI?

When performing Fluorescent Penetrant Inspection, it is essential to adhere to proper safety precautions:

  1. Personal Protective Equipment (PPE): Technicians must wear appropriate protective equipment, including gloves, safety goggles, and lab coats, to minimize exposure to chemicals and potential hazards.
  2. Ventilation: FPI should be conducted in well-ventilated areas or under the use of fume hoods to prevent the accumulation of potentially harmful fumes.
  3. Containment and Disposal: Proper containment and disposal procedures must be followed for used penetrant materials and other waste generated during the inspection process, in compliance with relevant regulations.



What Are The Essential Components Of An FPI System?

To perform Fluorescent Penetrant Inspection effectively, an FPI system typically consists of the following key components:



Penetrant Materials

These include the penetrant liquid, developer, and cleaners used during the inspection process.



Sprayers Or Applicators

Sprayers or applicators are used to uniformly apply the penetrant liquid to the surface being inspected.



Washing And Cleaning Stations

These stations are necessary to properly clean the component before the inspection and to remove any excess penetrant after the process.



UV And Visible Light Sources

To detect and analyze the penetrant indications, UV light sources are used in combination with visible light sources.



Inspection Booth

An inspection booth provides an area with controlled lighting conditions, allowing inspectors to accurately examine the components for any signs of defects.



What Is The Difference Between LPI And FPI?

Liquid Penetrant Inspection (LPI) is a testing method that is often erroneously interchanged with Fluorescent Penetrant Inspection (FPI). However, these two techniques have distinct characteristics and applications:

  • Penetrant Type: While both methods utilize penetrants, FPI employs a fluorescent penetrant, which contains fluorescent dyes that glow brightly under UV light, whereas LPI employs a visible dye penetrant that is visible under white light.
  • Detection Sensitivity: FPI generally offers higher sensitivity due to the use of fluorescent dyes, making it more effective in detecting smaller defects that may be missed by LPI.
  • Detection Environment: FPI is conducted in a darkened environment with UV light to enhance the visibility of fluorescent indications, while LPI is carried out under white light.



What Is The History Of Fluorescent Penetrant Inspection?

The history of Fluorescent Penetrant Inspection (FPI) dates back to the early 1940s during World War II when the aerospace and defense industries urgently needed a reliable method to detect defects in critical aircraft components. The technique was initially developed as a top-secret military project to enhance aircraft safety and reliability. After the war, FPI technology was declassified, and its applications expanded beyond defense into commercial aerospace, space exploration, and satellite technologies. Over the decades, FPI has undergone significant advancements, from the development of more sensitive fluorescent penetrants to the integration of automated inspection systems. Today, it stands as a cornerstone of quality control and safety assurance in industries where precision is non-negotiable.



What Is The Current Environment Of Fluorescent Penetrant Inspection?

In the current environment, Fluorescent Penetrant Inspection remains indispensable in industries that demand the highest levels of quality and safety. The aerospace, defense, space, and satellite sectors continue to rely on FPI to maintain the structural integrity of critical components. With ongoing advancements in materials and manufacturing technologies, FPI has adapted to meet the evolving needs of these industries. Modern FPI equipment incorporates digital imaging and computerized data analysis, enhancing accuracy and efficiency. Furthermore, strict regulatory requirements and industry standards mandate the use of FPI, reinforcing its central role in ensuring product reliability and safety. As a result, FPI continues to be a key component in the toolkit of full-service finishing companies serving these high-stakes industries.



What Is The Future Of Fluorescent Penetrant Inspection?

The future of Fluorescent Penetrant Inspection holds promising developments. As industries evolve, so does the demand for more advanced inspection techniques. In the coming years, we can anticipate several trends and innovations in FPI:

  1. Advanced Materials: FPI techniques will need to adapt to the increasing use of advanced composite materials in aerospace and space applications.
  2. Automation and AI: The integration of automation and artificial intelligence (AI) into FPI systems will streamline inspections, improve defect recognition, and reduce human error.
  3. Portable FPI Devices: The development of portable and handheld FPI devices will enable inspections in challenging environments, including remote field locations and space missions.



Frequently Asked Questions About Fluorescent Penetrant Inspection



How long does a fluorescent penetrant inspection typically take?

The duration of a Fluorescent Penetrant Inspection (FPI) can vary depending on the size and complexity of the component being inspected. However, a typical FPI process can take anywhere from a few hours to a full day, including the necessary pre-cleaning, application of penetrant, dwell time, excess penetrant removal, and developer application.



Can fluorescent penetrant inspection be performed on all materials?

Fluorescent Penetrant Inspection (FPI) can be applied to a wide range of materials, including metals, composites, and ceramics. However, it is important to note that the success of the inspection largely depends on the material’s surface condition and its ability to effectively retain penetrant. Any surface coatings, such as paint or oxide layers, should be removed to ensure accurate inspection results.



Is special training required to perform fluorescent penetrant inspection?

Yes, specialized training is essential for technicians involved in conducting Fluorescent Penetrant Inspection (FPI). They need to acquire knowledge and skills in proper technique application, interpretation of inspection results, and adherence to safety protocols. Training and certification programs are available to ensure the proficiency of FPI technicians.



How often should fluorescent penetrant inspection be performed?

The frequency of Fluorescent Penetrant Inspection (FPI) depends on various factors, including industry regulations, component criticality, and operational conditions. Typically, FPI is performed during initial inspections, as well as periodically during maintenance, repair, and overhaul (MRO) cycles. The specific inspection intervals should be determined based on industry standards and component-specific requirements.



Can components that have undergone fluorescent penetrant inspection still be used?

Yes, components that have undergone successful Fluorescent Penetrant Inspection (FPI) can still be used, provided they pass the inspection criteria and meet the necessary quality standards. FPI is a non-destructive testing method that does not compromise the structural integrity of the components.



Can fluorescent penetrant inspection be applied to complex geometries?

Yes, Fluorescent Penetrant Inspection (FPI) can be adapted to inspect components with complex geometries. The technique can be utilized using various application methods, such as dipping, spraying, or brushing, to ensure penetrant coverage on intricate surfaces and hard-to-reach areas. This allows for comprehensive defect detection across a wide range of component shapes and configurations.



Can FPI be used on high-temperature components?

FPI is versatile and can be adapted for use on high-temperature components by employing specialized penetrants designed for such applications.



What are the advantages of FPI over other non-destructive testing methods?

FPI offers advantages such as high sensitivity, adaptability to various materials, and the ability to detect fine surface cracks and defects that might be missed by other methods.



Are there any limitations to FPI?

FPI may not be suitable for inspecting components with complex geometries or surfaces that are difficult to clean thoroughly. In such cases, other NDT methods may be more appropriate.



Is FPI compliant with industry standards and regulations?

Yes, FPI is widely recognized and accepted in various industries and is often compliant with relevant standards and regulations.
