Key Takeaways:
- Three Designators Required: A conforming callout specifies the thickness class, purity type, and hardness code, as well as ordering details such as significant surfaces and underplating.
- Minimum, Not Average: Each class number is a floor to be met throughout significant surfaces, not a process target.
- Nickel Underplate Is Mandatory: Copper and copper-alloy substrates require nickel underplating in all classes except Class 5.0.
When a connector fails mid-flight, the cause often traces back to a plating decision made long before the aircraft left the ground. Gold plating on aerospace connectors isn’t decorative; it’s functional, and the margin for error is essentially zero. That’s where ASTM B488 comes in: the specification that defines exactly what constitutes acceptable gold plating, from type and grade to minimum thickness requirements.
At Valence, we’ve built our gold-plating operations around compliance with specifications such as ASTM B488, supporting aerospace, defense, and space programs where connector reliability is mission-critical.
In this piece, we’ll break down what ASTM B488 actually requires, how its classifications affect connector performance, and what to look for when evaluating whether your supplier is truly meeting the spec.
What Is ASTM B488 And Why Does It Matter For Aerospace Connectors?
ASTM B488 is the ASTM International standard governing electrodeposited gold coatings for engineering use. It defines gold-plating requirements by type, grade, and class, covering purity, hardness, and minimum thickness, providing manufacturers and suppliers with a shared technical baseline for specifying and verifying compliant coatings.
For aerospace connectors, that baseline is critical. Connectors must maintain low contact resistance, resist corrosion across extreme temperature ranges, and withstand thousands of mating cycles. Gold plating delivers all of that, but only when applied to the right specification. Improper purity, insufficient thickness, or an incompatible underlayer can turn a reliable connector into a program risk.
ASTM B488 removes the guesswork, giving procurement teams and engineers a verifiable, documented standard rather than a loosely interpreted internal process.
What ASTM B488 Requires: Thickness Classes And Coating Types
ASTM B488 requires a complete callout built from three core parts: thickness class, purity type, and hardness code. Section 5 also requires additional ordering information, including significant surfaces, underplating, applicable tests, and sampling, and thickness may alternatively be expressed as mass per unit area.
Thickness classes
The commonly specified class minimum thicknesses are 0.25 µm (~10 µin), 0.50 µm (~20 µin), 0.75 µm (~30 µin), 1.0 µm (~40 µin), 1.25 µm (~50 µin), 2.5 µm (~100 µin), and 5.0 µm (~200 µin). These are floors, not averages. Table 1 defines each class numeral as the minimum linear thickness in micrometers, so a part plated to an average of 1.0 µm does not automatically conform to Class 1.0.
Coating types
Coatings are classified into types that characterize minimum purity and codes that designate Knoop hardness. For connectors, purity governs conductivity and solderability, while hardness governs wear over repeated mating cycles.
Gold Plating Grades And Codes Defined Under ASTM B488
ASTM B488 defines purity by type and hardness by code, and lists customary purity, hardness combinations representative of good commercial practice.
Purity types
The three types are defined by their minimum gold content: Type I is 99.7%, Type II is 99.0%, and Type III is 99.9%.
Hardness codes
Code A is 90 Hk25 max, Code B is 91–129 Hk25, Code C is 130–200 Hk25, and Code D is greater than 200 Hk25.
Customary purity–hardness combinations
The standard lists customary purity, hardness combinations: Type I with codes A, B, and C; Type II with B, C, and D; and Type III with A only. ASTM requires that a hardness code be specified; the practice of defaulting Type I to Grade A and Type II to Grade C appears in MIL-DTL-45204, not ASTM B488.
Testing And Inspection Requirements Under ASTM B488
ASTM B488 requires verifying applicable requirements using the specified tests, representative specimens where permitted, and the agreed sampling plan. Requirements may address thickness, mass per unit area, adhesion, ductility, integrity, and appearance, with ductility testing conditional and purity and hardness evaluated using representative deposits.

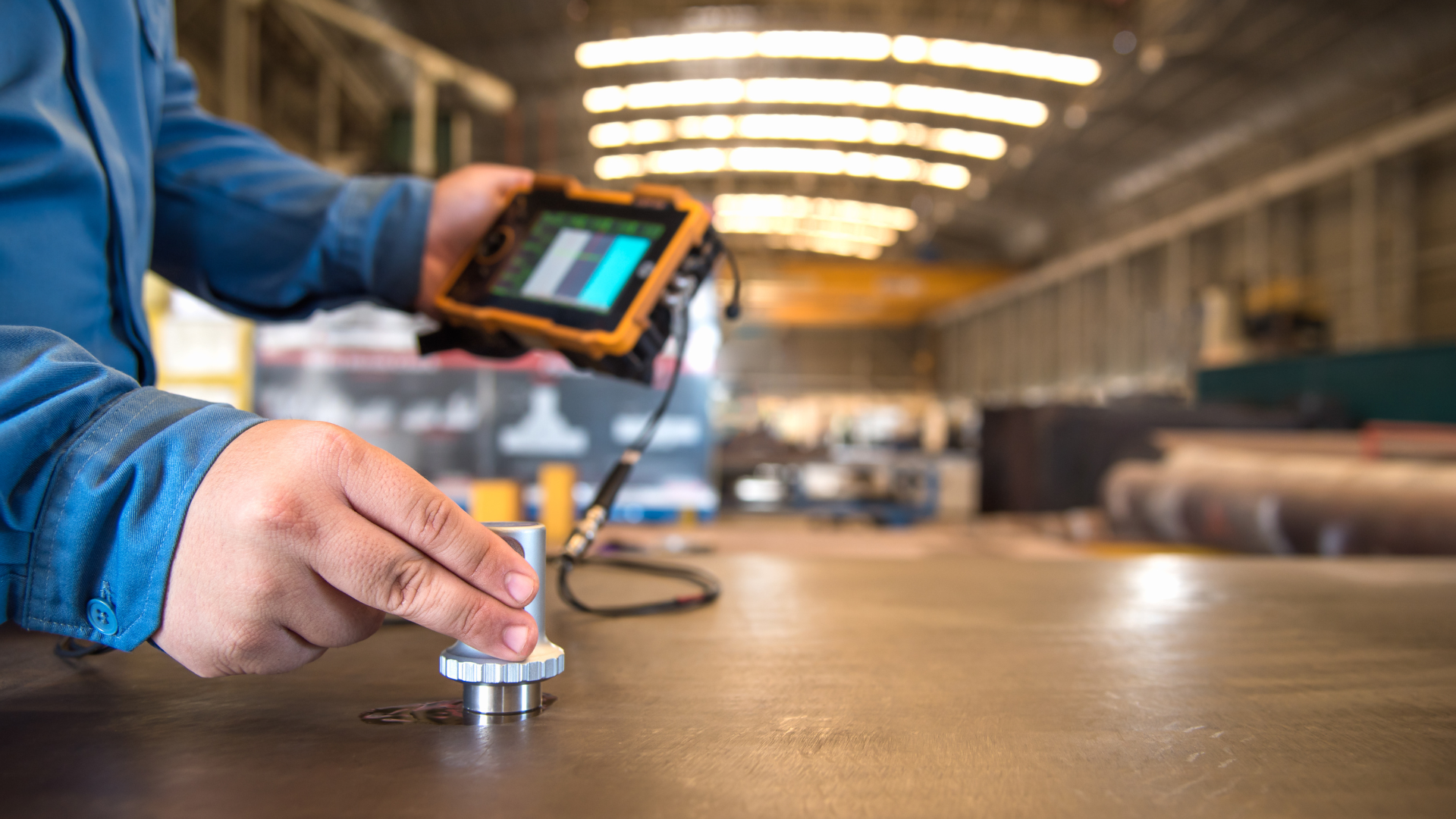

Thickness verification
Thickness must meet the minimum throughout significant surfaces while respecting drawing tolerances. XRF and beta backscatter are accepted non-destructive verification methods, and the accessible ASTM text also lists optical and SEM cross-section methods.
Process control
Because bath and geometry variation are unavoidable, disciplined platers plate above the minimum as a process-control practice. Setting the process target above the class minimum, with enough margin to absorb bath variation and measurement uncertainty, and confirming this with regular thickness verification across multiple points, keeps the distribution above the class floor.
Common Applications For ASTM B488 Gold Plating In Aerospace Electronics
ASTM B488 gold plating shows up wherever aerospace electronics demand stable, corrosion-resistant electrical connections. The specification defines thickness, purity, and classification requirements for electrodeposited gold on a variety of base metals.
For a broader look at the surface finishing services that support these applications, explore our Valence Services Overview.
Connectors and contacts
Hard gold handles the mechanical demands of mating connectors. Documented examples illustrate the range: XMA specifies Type II, Grade C, 0.00010–0.000150-inch gold for one RF product (XMA Corporation, n.d.), while Glenair documents 50-µin ASTM B488 gold on certain Micro-D contacts. Cobalt or nickel alloying provides hardness for repeated mating cycles.
Soldered and bonded terminations
Where solder joints matter, gold can support solderability, but reliable joints require control of gold dissolution, solder composition, and applicable gold-removal requirements. NASA identifies gold and tin embrittlement and specifies gold removal for applicable mission-critical soldered terminations, so purity alone does not eliminate this failure mechanism.
How ASTM B488 Compares To Other Gold Plating Specifications
ASTM B488 shares a classification language with the military specs, but differs in scope and thickness-class numbering. Knowing which spec a program actually calls out is key.
ASTM B488 vs. MIL-DTL-45204
Corresponding purity and hardness categories align, but the specifications and thickness-class numbers are not interchangeable. For example, military Class 1 specifies 0.00005 inch, while ASTM Class 1.0 denotes 1.0 µm. Legacy drawings warrant care due to the 2001 renumbering, when ASTM realigned its purity type designations with MIL-DTL-45204; an older drawing is not automatically erroneous and should be interpreted using the edition it invokes.
ASTM B488 vs. AMS2422
The correct designation is AMS2422, currently revision G. Its public record confirms an electrodeposited gold scope, and the revision-F ordering information requires the purchaser to specify the thickness. Broadly, AMS2422 is aerospace- and defense-focused, while ASTM B488 has broader industrial and medical applications.
Final Thoughts
ASTM B488 gives aerospace connector programs a precise language for gold plating, purity type, hardness code, and thickness class, each verified against defined minimums. The details that most often trip up buyers are treating a class as a floor rather than an average, remembering nickel underplate on copper substrates, and catching legacy drawings that predate the 2001 renumbering. Getting these right supports contact reliability across the life of the part. Valence brings that discipline to every ASTM B488 job, all under a unified standard.
Frequently Asked Questions About ASTM B488 Gold Plating: What The Spec Requires For Aerospace Connectors
What does ASTM B488 require for gold-plated aerospace connectors?
It requires a complete callout of thickness class, purity type, and hardness code, plus ordering details such as significant surfaces and underplating. Each thickness class is enforced as a minimum throughout significant surfaces, not an average.
What is the best gold plating thickness for RF and electronic contacts?
It depends on wear and environment. Documented products range from 50 µin to 0.000150 inch of gold. Class options include 0.25, 0.50, 0.75, 1.0, 1.25, 2.5, and 5.0 µm minimum thickness.
What are the coating types, grades, and hardness classes defined in ASTM B488?
Type I is 99.7% minimum gold, Type II is 99.0% minimum, and Type III is 99.9% minimum. Hardness codes are A (90 max), B (91–129), C (130–200), and D (>200) Hk25.
Why is nickel underplating used beneath ASTM B488 gold plating?
Nickel is required underplating for copper and copper-alloy substrates in all classes except Class 5.0, reducing copper diffusion and porosity corrosion; note that ASTM identifies potential nickel-related high-frequency signal attenuation.
How does ASTM B488 compare to AMS2422 and MIL-DTL-45204?
ASTM classification categories overlap with MIL-DTL-45204, but the specifications and thickness-class numbers are not interchangeable. AMS2422 is aerospace and defense-focused, while ASTM B488 has broader industrial and medical applications.
What are the specifications for gold plating?
Under ASTM B488, coatings are classified into types that characterize minimum purity and codes that designate Knoop hardness, plus thickness classes, underplating, and measurement rules.
