Key Takeaways:
- Hard Chrome Plating Delivers Superior Wear Resistance: Maximum hardness and low friction make chrome plating aerospace components the standard for high-wear applications.
- Electroless Nickel Provides Uniform Corrosion Protection: Chemical deposition ensures consistent coating thickness on complex geometries, critical for mission-critical parts.
- Selection Depends on Specific Performance Requirements: Choosing between hard chrome vs electroless nickel requires evaluating wear conditions, corrosion environment, dimensional tolerances, and regulatory compliance.
Which coating will prevent your critical aerospace component from failing under extreme operational stress? The choice between hard chrome plating and electroless nickel determines whether your parts deliver reliable performance across thousands of flight hours or become costly maintenance issues that ground aircraft.
Valence Surface Technologies operates multiple aerospace surface-finishing facilities serving a broad customer base and has a comprehensive understanding of surface-finishing performance requirements. Our technical expertise positions us to deliver the coating solutions that keep aerospace programs on schedule and compliant with the most stringent industry standards.
In this article, we’ll compare hard chrome plating and electroless nickel coatings across critical performance parameters, wear resistance, corrosion protection, cost considerations, and application-specific selection criteria, to help you specify the optimal coating for your aerospace manufacturing requirements.

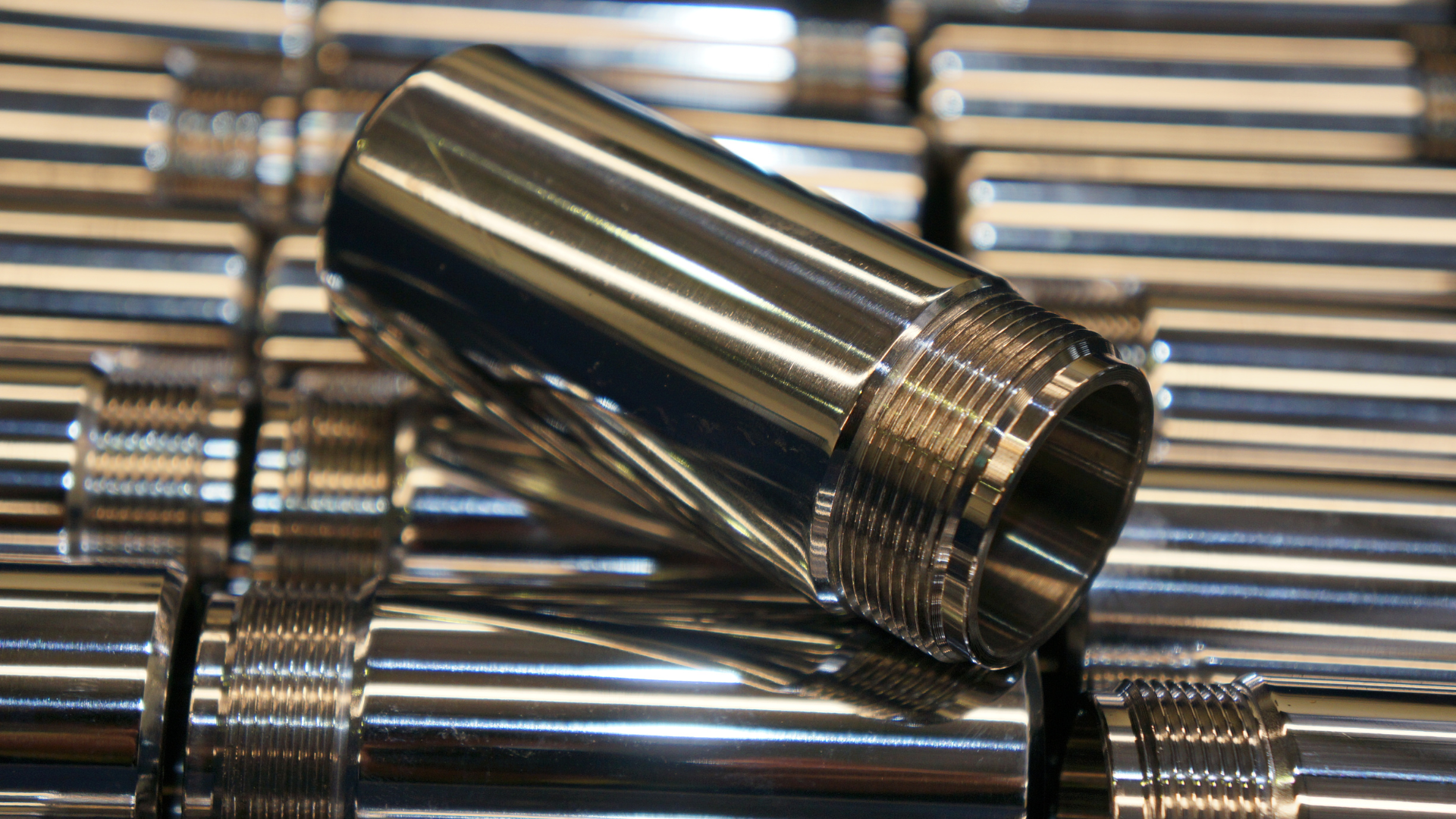

What Is Hard Chrome Plating And How Does It Perform In Aerospace Applications?
Hard chrome plating deposits chromium onto metallic substrates through electrolytic processes, creating surfaces with exceptional hardness and wear resistance. The process commonly produces coatings ranging from 0.0005 to 0.020 inches thick, with hardness values between 850 and 1,000 Vickers, though actual allowable thickness is specification-dependent.
Wear Resistance Performance
Chrome plating aerospace components delivers the highest hardness among common surface finishes, making it ideal for parts subjected to sliding friction, abrasion, and mechanical wear. Landing gear components, hydraulic cylinders, and actuator rods rely on hard-chrome plating to maintain dimensional stability over extended service intervals.
Temperature and Chemical Stability
Hard chromium generally retains useful hardness at elevated temperatures, but performance limits depend on exposure time, substrate material, coating condition, and service environment. The coating resists chemical attack from hydraulic fluids, fuels, and lubricants commonly encountered in aerospace environments.
Dimensional Control Considerations
The electrolytic deposition process can produce slight thickness variations on complex geometries, requiring precise masking and control of current density to achieve uniform coverage. Post-plate grinding often addresses dimensional requirements on critical surfaces.
What Is Electroless Nickel And How Does It Perform In Aerospace Applications?
Electroless nickel plating applies a nickel-phosphorus alloy through autocatalytic chemical reduction, eliminating the need for electrical current. This process produces uniform coatings on complex geometries with consistent thickness distribution regardless of part configuration.
Corrosion Protection Capabilities
Electroless nickel, especially high-phosphorus EN, provides superior corrosion resistance compared to hard chrome, particularly in salt spray environments and chemical exposures. The coating forms a barrier layer that protects substrates from oxidation, making it preferred for fuel system components and externally mounted hardware.
Coating Uniformity and Thickness Control
The chemical deposition mechanism ensures uniform coating thickness on internal surfaces, recesses, and complex contours that are difficult to achieve with conventional electroplating. This uniformity advantage proves critical for components with tight dimensional tolerances and inaccessible surfaces.
Hardness and Wear Performance
As-deposited electroless nickel commonly falls around 450–550 HV, while heat treatment can raise hardness substantially—often into the 650–1,000 HV range depending on phosphorus content and heat-treatment parameters.
In many aerospace applications, hard chrome remains the benchmark for hardness, but heat-treated electroless nickel can approach it. Medium-phosphorus formulations balance wear resistance with corrosion protection for most aerospace applications.
Hard Chrome vs. Electroless Nickel: Key Differences In Wear Resistance
Hard chrome plating outperforms electroless nickel in pure wear resistance applications. The higher hardness makes chrome plating the specification choice for aerospace components in sliding wear, abrasion, and high-contact-pressure environments.
Coefficient of Friction Comparison
Hard chrome generally provides low friction in sliding applications, but the coefficient of friction varies significantly with counterface material, lubrication, surface finish, load, and test method.
Electroless nickel friction values also vary by phosphorus content, heat treatment, and composite additives. This difference becomes significant in reciprocating mechanisms, bearings, and high-cycle applications where friction reduction extends component life.
Abrasive Wear Performance
Testing under controlled abrasive conditions demonstrates hard chrome’s superior resistance to material loss from particle impact and sliding contact. Components exposed to hydraulic system contaminants, environmental debris, or metal-to-metal contact benefit from chrome’s wear characteristics.
Hard Chrome vs. Electroless Nickel: Corrosion Protection Compared
High-phosphorus electroless nickel provides more comprehensive corrosion protection than hard chrome, particularly in harsh chemical and salt-laden environments. The coating’s barrier properties and chemical resistance make it the preferred specification for fuel-wetted parts and components requiring extended exposure to corrosive atmospheres.
Salt Spray Resistance
Electroless nickel consistently outperforms hard chrome in ASTM B117 salt spray testing, demonstrating longer protection periods before corrosion breakthrough. This performance advantage proves critical for externally mounted hardware and coastally operated aircraft.
Hydrogen Embrittlement Risk
Hard chromium plating can introduce hydrogen into high-strength steels, requiring post-plating embrittlement-relief baking in accordance with aerospace specifications. Electroless nickel may also involve hydrogen evolution, but its embrittlement risk depends on substrate strength, surface preparation, process chemistry, and required post-plate heat treatment.
Cost, Thickness, And Dimensional Considerations For Each Coating Type
Hard chrome may be more economical for some thick, wear-focused coatings, while electroless nickel may reduce downstream finishing costs on complex geometries because of its uniform deposition. Lead times depend on facility capacity and part complexity rather than inherent process differences.
Thickness Build Rate and Economics
Chrome plating deposits faster than electroless nickel for thick coatings, making it advantageous for applications requiring substantial material buildup. Electroless nickel’s slower deposition rate increases costs for heavy coatings but reduces post-processing needs through superior thickness uniformity.
Dimensional Impact
Hard chrome’s ability to be ground to precise final dimensions accommodates tighter tolerances through post-plate machining. Electroless nickel’s uniform thickness reduces dimensional variation but limits grinding options due to lower hardness.

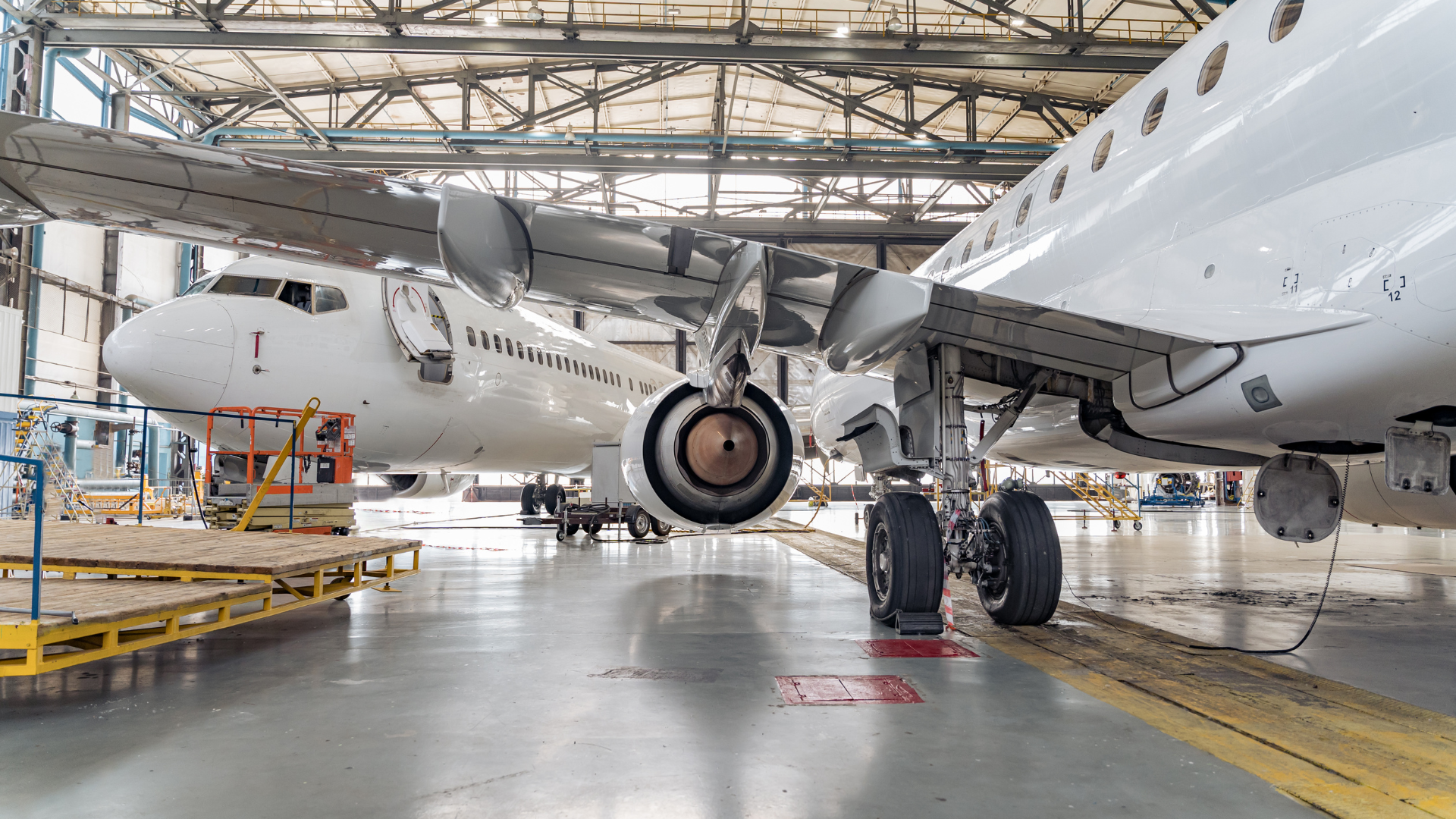

How To Choose The Right Coating For Your Aerospace Component
Coating selection requires analyzing operational requirements, environmental exposures, and performance priorities. Hard chrome plating suits high-wear, high-load applications where maximum hardness justifies additional processing. Electroless nickel serves corrosion-critical applications and complex geometries requiring uniform protection.
To find the facility best positioned to support your program, explore our valence surface tech locations across the country.
Application-Specific Selection Criteria
Specify hard chrome for landing gear components, hydraulic cylinders, and wear surfaces experiencing sliding friction. Choose electroless nickel for fuel system components, fasteners, and parts that require uniform coating of internal passages or complex contours.
Regulatory and Specification Compliance
Aerospace applications commonly reference AMS 2460 for chromium plating and AMS 2404 for electroless nickel-phosphorus plating. Depending on the customer, part criticality, and program, suppliers may also need Nadcap accreditation and OEM- or defense-specific process approvals.
Final Thoughts
The choice between hard chrome plating and electroless nickel determines component performance, maintenance intervals, and program success across aerospace applications. Hard chrome delivers maximum wear resistance in high-friction environments, while electroless nickel provides superior corrosion protection and uniform coating on complex geometries.
Valence’s integrated surface-finishing capabilities, comprehensive regulatory approvals, and commitment to operational precision ensure your components receive the optimal coating specification, executed to the highest quality standards. Our strategic facility network and unified Quality Management System eliminate vendor fragmentation while maintaining the delivery performance and audit readiness your programs require.
To explore the full range of finishing options we offer, visit our services page.
Frequently Asked Questions About Hard Chrome Plating vs. Electroless Nickel: Choosing The Right Coating For Wear And Corrosion
When should I specify hard chrome plating over electroless nickel for aerospace components?
Specify hard chrome plating for high-wear applications requiring maximum hardness, including landing gear components, hydraulic cylinders, and actuator rods where sliding contact demands superior abrasion resistance.
What are the cost and lead time differences between hard chrome plating and electroless nickel?
Hard chrome may be more economical for some thick, wear-focused coatings, while electroless nickel may reduce downstream finishing costs on complex geometries—lead times depend primarily on facility capacity rather than process differences.
Are there environmental or regulatory compliance differences between hard chrome and electroless nickel coatings?
Hard chromium plating is subject to significant hexavalent chromium controls, including OSHA exposure requirements and EPA National Emission Standards for Hazardous Air Pollutants. Electroless nickel is not free of regulatory obligations, but it generally avoids the specific Cr(VI) regulatory burden of conventional hard chrome plating.
Which coating is better for high-wear, high-friction aerospace applications?
Hard chrome plating provides superior performance in high-wear environments due to its exceptional hardness (850–1,000 HV).
How does electroless nickel perform in corrosion-critical environments?
Electroless nickel delivers excellent corrosion protection in salt spray, chemical exposures, and harsh atmospheric conditions, consistently outperforming hard chrome in ASTM B117 salt spray testing and fuel system applications.
What certifications and approvals do hard chrome and electroless nickel coatings require in aerospace manufacturing?
Aerospace applications commonly reference AMS 2460 for chromium plating and AMS 2404 for electroless nickel-phosphorus plating. Depending on the customer, part criticality, and program, suppliers may also need Nadcap accreditation and OEM- or defense-specific process approvals.
