Key Takeaways:
- Hydrogen Embrittlement Poses Catastrophic Risk: High-strength aerospace components can fail without warning when hydrogen atoms compromise material ductility during plating operations.
- Mandatory Baking Cycles Mitigate Absorption: Post-plate thermal treatments drive absorbed hydrogen out of the substrate before stress concentration points form crack initiation sites.
- Rigorous Testing Validates Material Integrity: Sustained-load and stress testing confirm that parts retain the required mechanical properties after finishing processes.
A high-strength steel fastener can pass every visual inspection and still fail catastrophically in service, not from corrosion or wear, but from hydrogen absorbed during the plating process. Hydrogen embrittlement is one of aerospace plating’s most serious and least visible risks, capable of causing delayed fracture in critical components long after they leave the finishing line. The damage is done quietly, and the consequences are anything but.
Valence Surface Technologies, the world’s largest independent aerospace surface finishing company, manages hydrogen embrittlement risk across every plating program, with the process controls, baking protocols, and testing disciplines that aerospace and defense specifications demand.
In this piece, we will cover how hydrogen embrittlement occurs, which components are most at risk, how it is tested, and the baking requirements that prevent it.

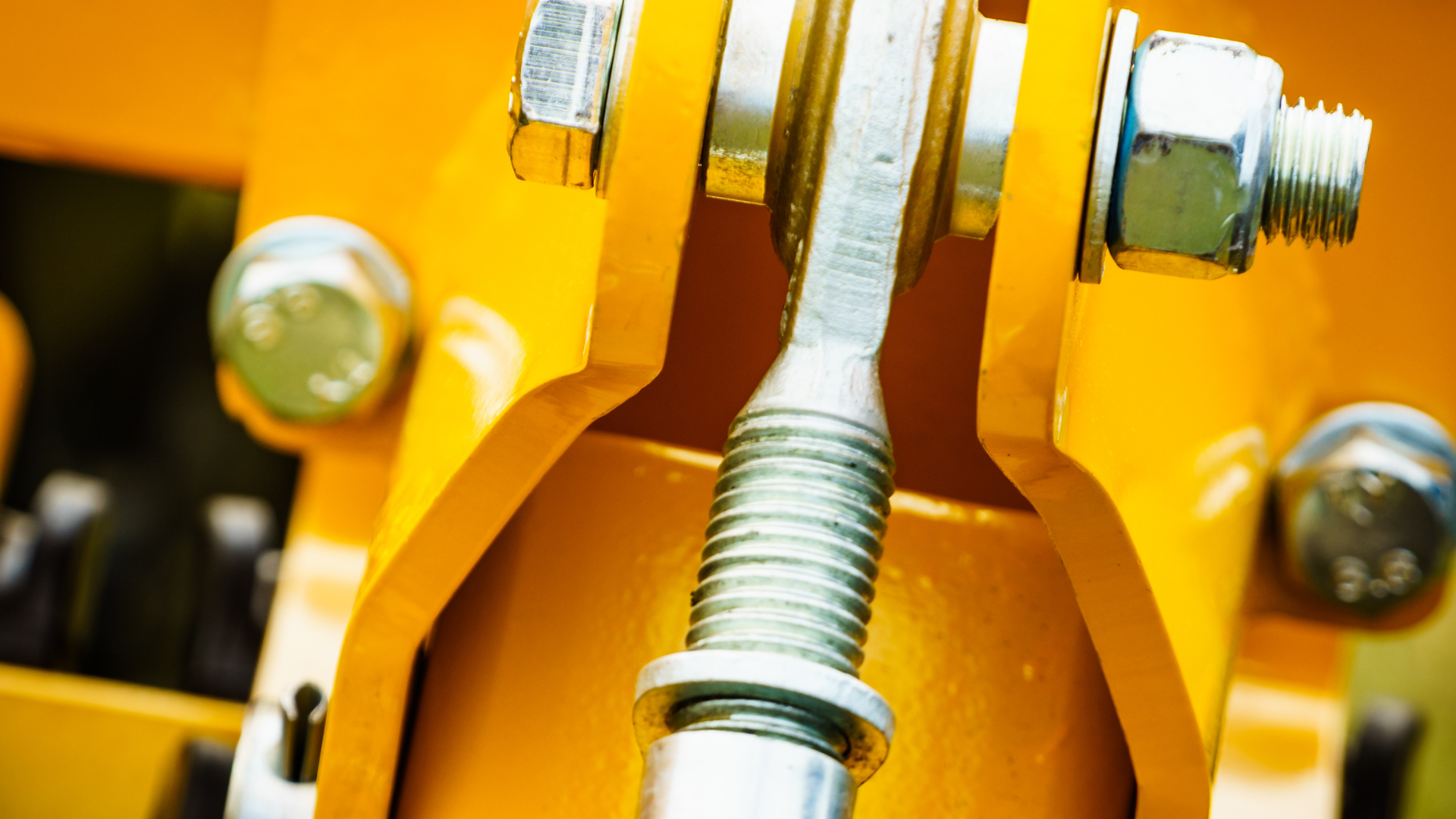

What Is Hydrogen Embrittlement And Why Does It Matter In Aerospace Plating?
Hydrogen embrittlement occurs when atomic hydrogen is absorbed into a metal during plating or cleaning, reducing ductility and creating a risk of sudden, delayed fracture under stress. Unlike surface defects, it occurs internally and often shows no outward sign until a component fails in service.
The risk is highest in high-strength steels, particularly those above 200 ksi tensile strength, where absorbed hydrogen migrates to areas of high stress concentration and weakens the metal’s structure. Fasteners, landing gear parts, and structural hardware are especially vulnerable, since they are routinely plated and subjected to sustained mechanical load.
Hydrogen embrittlement’s delayed nature makes it particularly dangerous: a part can pass inspection and be installed without issue, only to fail days or weeks later. This is why hydrogen embrittlement relief, a controlled post-plating baking process, is a mandatory step in aerospace specifications, not an optional safeguard.
How Hydrogen Embrittlement Plating Risks Occur During Finishing
Hydrogen embrittlement risk is introduced at multiple points during the finishing process, not just during electroplating itself. Understanding where hydrogen enters the metal is essential to controlling the risk.
- Acid Cleaning and Pickling: Acidic solutions used to remove oxides and contaminants before plating generate atomic hydrogen at the metal surface, which can diffuse into the base material.
- Electroplating: During cadmium, zinc, or nickel plating, the electrochemical reaction at the cathode produces hydrogen as a byproduct, some of which is absorbed into the substrate rather than released as gas.
- Electropolishing and Etching: Processes that remove material through electrochemical or chemical action can also generate hydrogen at the surface, particularly on high-strength steel substrates.
- Prior Processing History: Parts that have undergone multiple finishing steps, cleaning, plating, stripping, and replating, face cumulative hydrogen exposure risk with each cycle.
The severity of hydrogen uptake depends on substrate composition, prior heat treatment, surface condition, and the specific chemistry and current density used during plating. High-strength steels with limited ductility are the most susceptible, which is why aerospace specifications require hydrogen embrittlement relief baking after any process step capable of introducing hydrogen into these materials.
To learn more about the plating processes involved, explore our full range of services.
Which Aerospace Components And Materials Are Most At Risk
Not every aerospace component carries the same hydrogen embrittlement risk. Susceptibility depends primarily on material strength, prior heat treatment, and the mechanical loads a component experiences in service.
High-Strength Steel Alloys
Materials including 4340, 300M, D6AC, and precipitation-hardening stainless steels (17-4PH, 15-5PH) require mandatory hydrogen embrittlement testing and baking when subjected to electroplating. These alloys combine high tensile strength with reduced tolerance for interstitial hydrogen.
Processes such as passivation of stainless steel play an important role in managing surface chemistry on these sensitive materials.
Mission-Critical Fasteners and Hardware
Bolts, screws, pins, and washers used in primary aircraft structures face combined tensile and shear loads that exploit any reduction in ductility. Fastener failures can compromise entire assemblies, making hydrogen embrittlement prevention non-negotiable for these components.

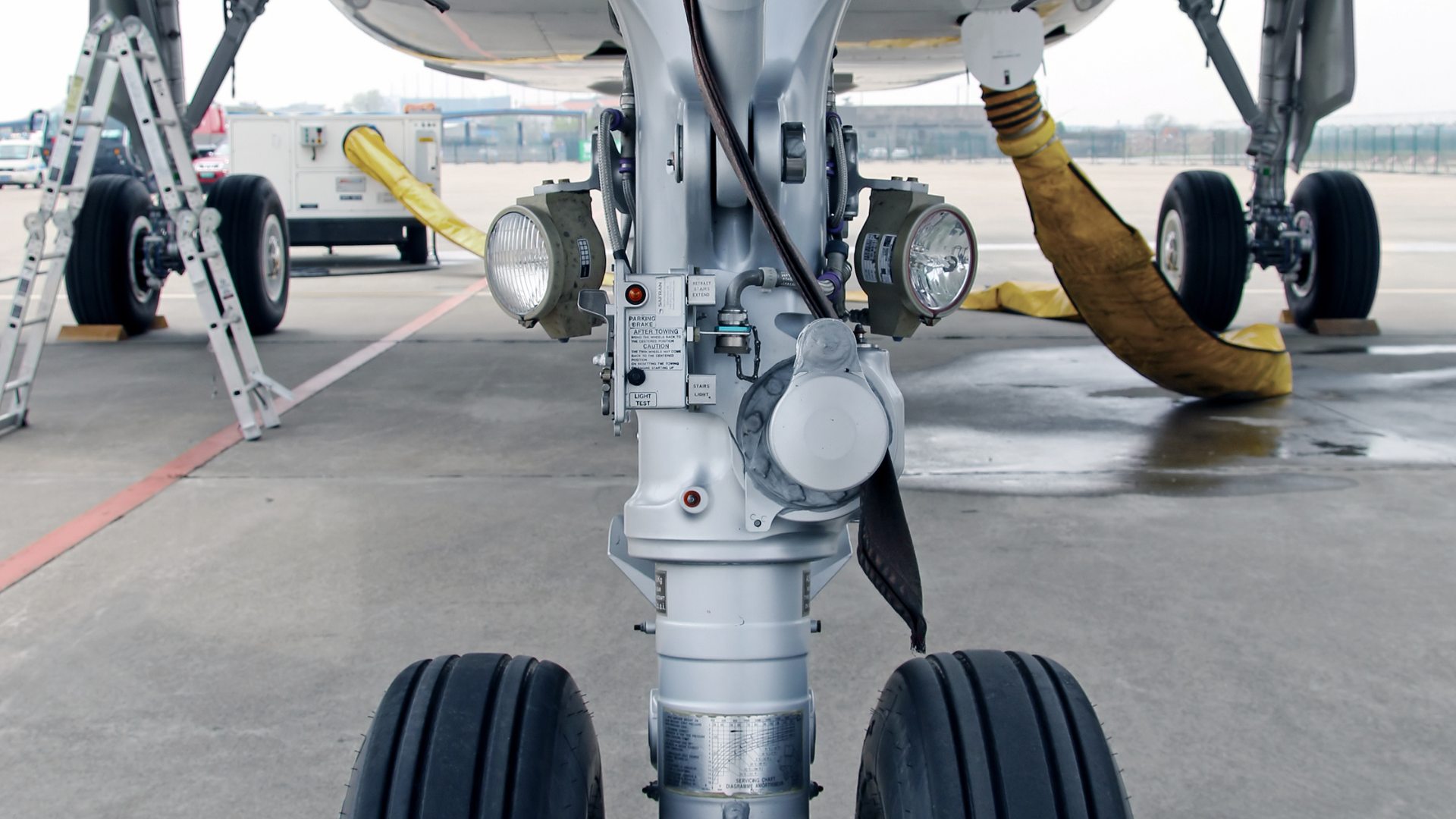

Landing Gear and Flight Control Components
Parts subjected to repeated cyclic loading—landing gear struts, actuator pins, control surface hinges—operate in environments where fatigue crack initiation would be accelerated by hydrogen-induced brittleness.
Industry Standards For Rigorous Hydrogen Embrittlement Testing
Aerospace hydrogen embrittlement testing is governed by established industry specifications that define testing methods, acceptance criteria, and documentation requirements for high-strength steel components.
Sustained Load Testing Protocols
ASTM F519 establishes the standard test method for mechanical hydrogen embrittlement evaluation (ASTM International, 2019). Test specimens are electroplated under production conditions, then subjected to sustained loads based on a percentage of the specimen’s notched fracture strength for 200 hours. Any crack formation or fracture indicates susceptibility.
Notched Tensile Testing
Specimens with controlled stress concentration features such as notches or threads are central to ASTM F519-type evaluation because they create high-stress regions that reveal susceptibility to hydrogen-assisted cracking. Process qualification is commonly based on sustained-load performance and fracture/non-fracture criteria.
Baking Requirements For Hydrogen Embrittlement Relief In Aerospace Plating
Hydrogen embrittlement relief is a controlled thermal treatment applied after plating to drive out absorbed hydrogen before it can migrate to areas of stress concentration and cause delayed cracking. Aerospace specifications treat this baking step as mandatory for high-strength steel components, with strict requirements governing timing, temperature, and duration.
Temperature and Duration Parameters
AMS2759/9 governs hydrogen embrittlement relief baking of steel parts and commonly involves baking around 375°F to 400°F (190°C to 205°C), with duration selected according to material condition, strength/hardness, coating, and specification requirements.
Plating methods such as electroless nickel plating are often specified in part because their chemical deposition process can reduce hydrogen uptake compared to electrolytic alternatives.
Timing Requirements After Plating
Post-plate baking must begin soon after plating, often within 4 hours of completing the electroplating process as specified in aerospace plating standards. Delayed baking allows absorbed hydrogen time to migrate to critical stress points, reducing the effectiveness of thermal relief cycles.
Verification and Documentation
Temperature monitoring throughout the baking cycle, with thermocouples placed on actual parts or representative load samples, provides objective evidence of compliance. Certification documentation must accompany parts through subsequent manufacturing operations.
Specification And Compliance Requirements For Hydrogen Embrittlement Prevention
Hydrogen embrittlement prevention in aerospace plating is governed by a layered set of specifications that define testing methods, baking protocols, and acceptance criteria. Compliance with these standards is not optional, it is a prerequisite for supplying plated components to aviation, defense, and space programs.
Military and Aerospace Standards
AMS-QQ-P-416 (cadmium plating), AMS2759/9 (hydrogen embrittlement relief), and ASTM F519 (hydrogen embrittlement testing) establish mandatory requirements for aerospace components. Defense contractors and commercial OEMs reference these specifications in procurement documentation and require supplier certification of compliance.
Our chrome plating processes are executed in full alignment with these standards, ensuring every plated component meets the documentation and performance requirements your program demands.
Quality Management System Integration
Effective hydrogen embrittlement prevention requires process controls embedded within the supplier’s quality management system—not simply procedural documentation. Temperature calibration, process validation, and lot traceability ensure consistent execution across production volumes.
Audit Readiness and Certification
Aerospace customers conduct regular supplier audits verifying hydrogen embrittlement testing capabilities, baking equipment calibration, and process documentation integrity. Suppliers must maintain objective evidence demonstrating consistent compliance with specification requirements.
Final Thoughts
Hydrogen embrittlement is one of aerospace manufacturing’s most preventable yet potentially catastrophic failure modes. Proper protocols, from electroplating process control through validated baking cycles and rigorous testing, separate truly capable surface finishing suppliers from those merely claiming aerospace qualification.
Valence Surface Technologies consolidates chemical processing, specialty plating, and post-plate thermal treatment under unified quality management systems, eliminating the risks of vendor fragmentation. When component failure is not an option, hydrogen embrittlement prevention cannot be an afterthought
Frequently Asked Questions About Hydrogen Embrittlement In Aerospace Plating: Causes, Testing, And Baking Requirements
How do you test for hydrogen embrittlement?
Hydrogen embrittlement testing uses sustained load testing per ASTM F519, where plated specimens are held at specified loads based on notched fracture strength for 200 hours to detect crack formation or fracture.
What are the effects of hydrogen embrittlement?
Hydrogen embrittlement reduces material ductility and resistance to brittle fracture, causing high-strength metals to fail suddenly through brittle fracture at loads well below their rated capacity.
What material is resistant to hydrogen embrittlement?
Lower-strength steels and many aluminum alloys are generally less susceptible to classical hydrogen embrittlement than high-strength steels. Titanium alloys require careful evaluation, as some can suffer hydrogen-assisted cracking under certain conditions.
How do you remove hydrogen embrittlement?
Post-plating baking reduces diffusible hydrogen and mitigates the risk of delayed hydrogen cracking when performed promptly and according to the governing specification.
What is the mechanism of hydrogen embrittlement?
Atomic hydrogen generated during electroplating diffuses into the metal substrate, migrates to grain boundaries and stress points, and interferes with metallic bonding, reducing the material’s ability to deform plastically.
What temperature profiles and duration are required for effective hydrogen bake-out cycles?
AMS2759/9 commonly involves baking around 375°F to 400°F with duration selected according to material condition, strength/hardness, and specification requirements, often beginning within 4 hours of plating completion.
