Key Takeaways:
- Shot Peening Prevents Fatigue Failure: Compressive stress layers inhibit crack initiation in high-cycle loading environments.
- Aerospace Specs Define Quality: AMS and SAE standards ensure consistent coverage, intensity, and process control across programs.
- Process Control Determines Performance: Media selection, velocity, coverage, and verification methods directly impact component reliability.
How do you prevent a $150 million aircraft from experiencing catastrophic structural failure at 35,000 feet? The answer lies in a controlled bombardment process that’s been strengthening mission-critical aerospace components for over 80 years.
Valence Surface Technologies has processed millions of aerospace parts through our shot peening facilities, supporting nearly every major commercial and military platform in production today. Our 12 strategically located facilities operate under unified quality systems specifically engineered for the precision, compliance, and scalability aerospace programs demand.
In this piece, we’ll break down the shot peening process for aerospace applications, explain how it extends fatigue life, identify the specifications that govern its use, and detail the quality control methods that ensure consistent results.

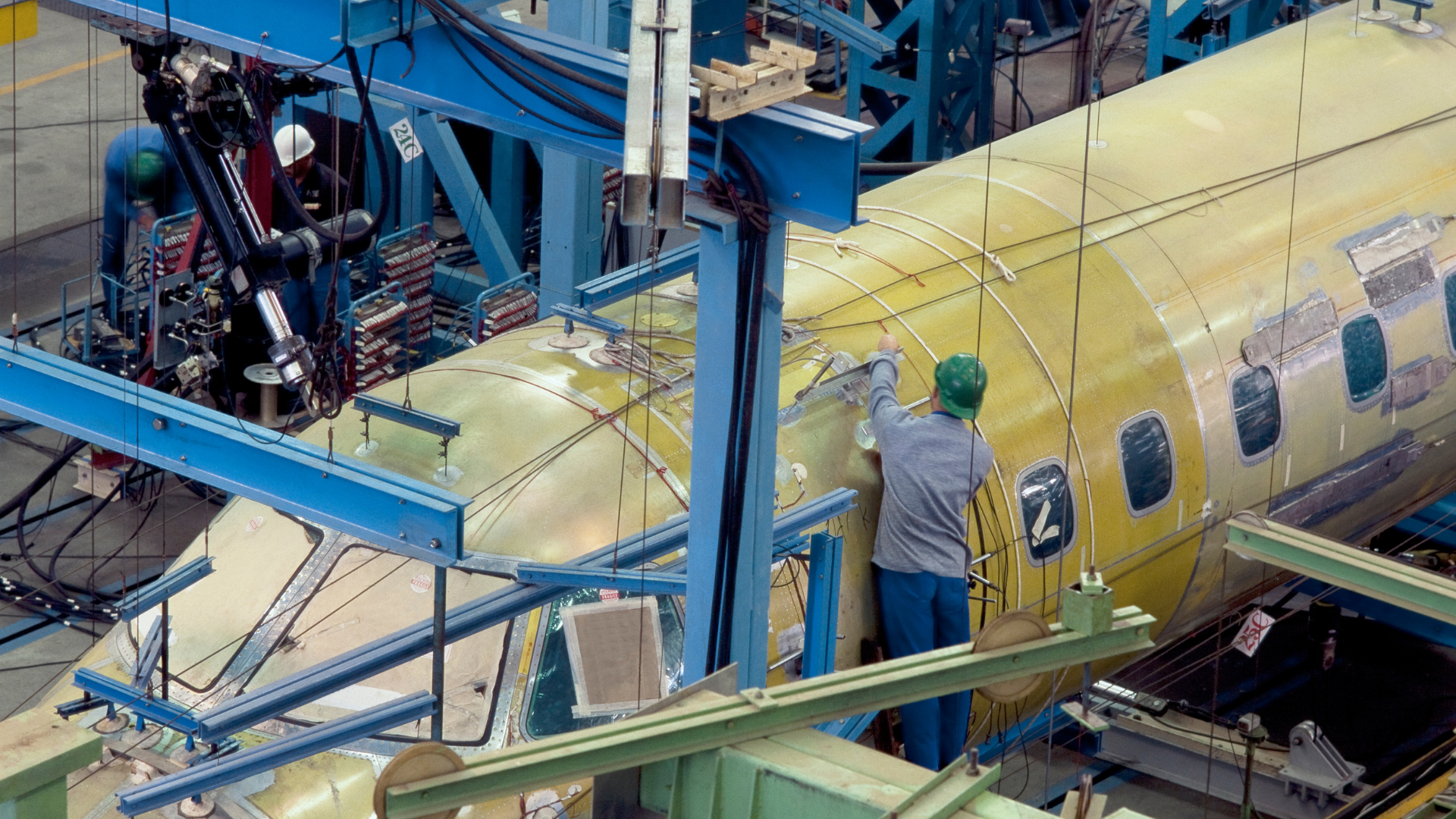

What Is Shot Peening And Why Is It Used In Aerospace Manufacturing?
Shot peening is a controlled mechanical surface treatment that propels spherical media against component surfaces to create compressive residual stress. This process fundamentally alters the material’s stress profile without changing dimensions or surface chemistry.
Aerospace manufacturers specify shot peening because aircraft components experience millions of loading cycles throughout their service life. Every takeoff, landing, and flight maneuver generates stress concentrations that can initiate fatigue cracks in untreated materials.
Fatigue is one of the dominant failure modes considered in aerospace structural design and certification, and FAA rules require damage-tolerance and fatigue evaluations for transport-category aircraft structures.
Why Compressive Stress Matters
Fatigue cracks most commonly initiate at locations where cyclic tensile stress, stress concentration, surface damage, inclusions, corrosion, or fretting create favorable conditions for crack nucleation. By introducing compressive stress at the surface, where cracks typically begin, shot peening creates a barrier that opposes crack formation and slows propagation if cracks do form.
How The Shot Peening Process Works Step By Step
The shot peening process follows a precisely controlled sequence designed to achieve specified intensity and coverage requirements.
Surface Preparation
Components must be clean and free of scale, rust, or coatings that would prevent proper peening. Most aerospace parts undergo chemical processing or masking before entering the shot peening cell.
Media Selection and Loading
Shot media, typically steel, glass, or ceramic beads, is selected based on component material, geometry, and specification requirements. Media size, hardness, and shape directly influence the depth and magnitude of compressive stress.
Peening Operation
Pneumatic or wheel-blast systems propel media at controlled energy levels; velocity varies by equipment, media, pressure, and wheel speed, and aerospace acceptance is typically governed by Almen intensity and coverage rather than velocity alone. Nozzle distance, angle, and pass rate are calibrated to achieve uniform coverage without inducing surface damage.
Coverage Verification
Aerospace shot peening commonly requires 100% visual coverage unless otherwise specified; some applications require coverage greater than 100%. Coverage is verified through visual inspection under magnification or fluorescent dye penetrant examination of witness coupons.
Intensity Measurement
Almen strips—standardized spring steel coupons—are peened alongside production parts. The resulting Almen arc height is used to quantify peening intensity and process repeatability; it does not directly measure the residual stress magnitude in the production component.

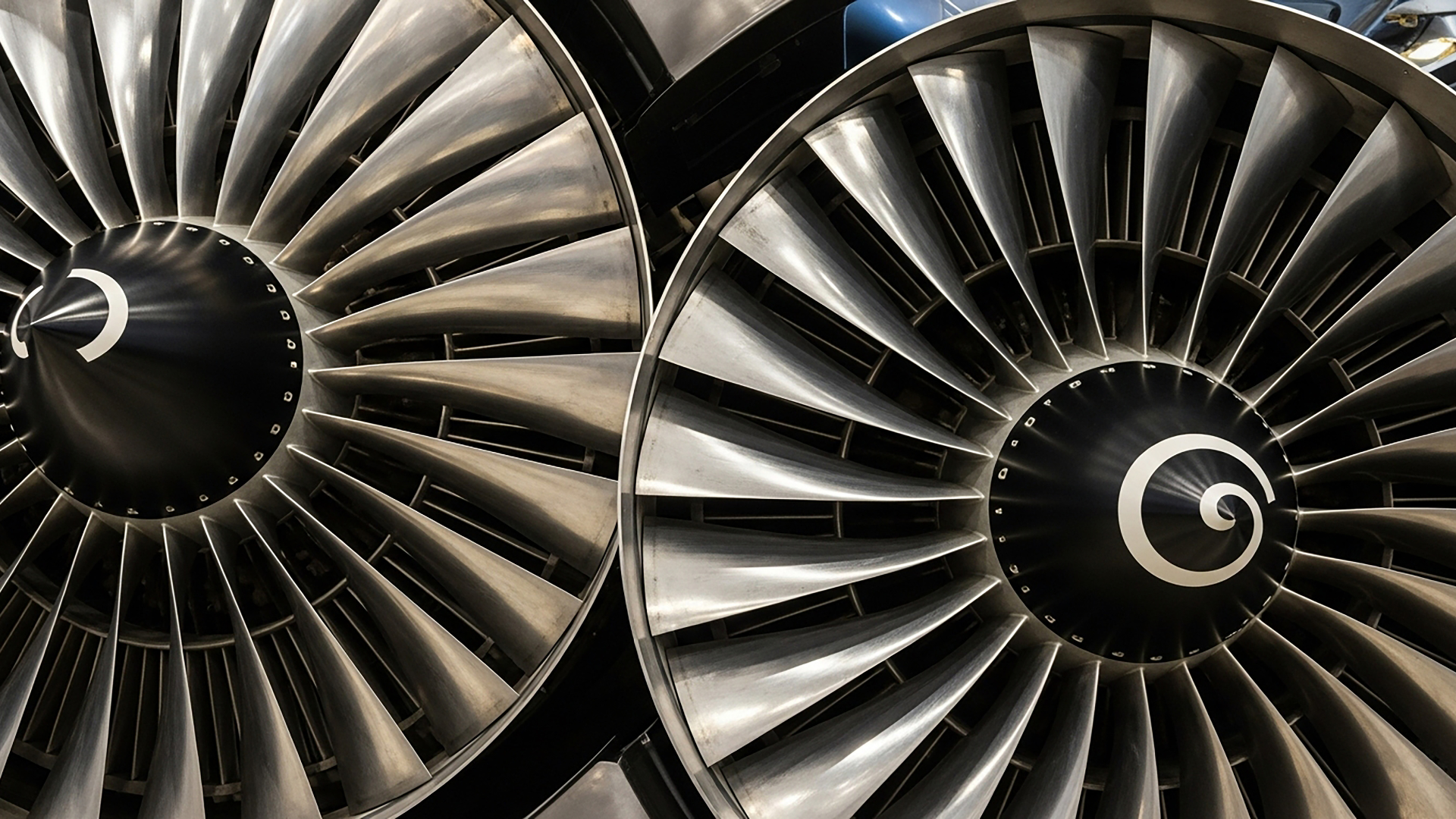

How Shot Peening Extends Fatigue Life On Aerospace Components
The shot peening process addresses fatigue failure at its source by modifying the stress state at component surfaces where cracks typically initiate.
Crack Initiation Threshold Increase
Compressive residual stress raises the stress level required to nucleate fatigue cracks, effectively increasing the component’s endurance limit. This is particularly valuable for parts operating below their yield strength but above their original fatigue threshold.
Crack Propagation Rate Reduction
Even when cracks initiate, compressive stress reduces their growth rate by mechanically closing crack faces and reducing stress intensity at crack tips. This provides additional operational margin before cracks reach critical length.
Surface Work Hardening
Shot peening can increase near-surface hardness through cold work, but the magnitude is material- and process-dependent. This provides secondary benefits for wear resistance and fretting fatigue in bolted or pinned joints.
Key Shot Peening Specifications Aerospace Programs Must Follow
Aerospace shot peening is governed by industry specifications that define media, intensity, coverage, and process controls.
SAE AMS-S-13165 and Related AMS Specifications
SAE AMS-S-13165 and related AMS shot-peening specifications establish requirements for controlled shot peening of metal parts; applicable requirements depend on the drawing, material, OEM specification, and revision level.
Specialized Peening Variants
Specialized peening variants, such as ultrasonic peening or computer-monitored peening, may be governed by separate SAE, OEM, or process-specific requirements.
OEM-Specific Requirements
Major airframers and engine manufacturers publish derivative specifications with tighter controls: Boeing BAC 5730, Airbus AIMS, GE Aviation specifications, and Pratt & Whitney PWA standards.
Process Documentation
Aerospace shot peening specifications require documentation of media lot traceability, intensity verification, coverage inspection, and equipment calibration—all elements Valence maintains through our unified Quality Management System.
Which Aerospace Components Benefit Most From Shot Peening
Certain component categories see disproportionate fatigue life improvement from the shot peening process.
Landing Gear Assemblies
Struts, truck beams, and actuator housings experience extreme cyclic loading during each landing event, making shot peening essential to meet design-life targets.
Engine-Mounted Hardware
Turbine discs, compressor blades, and mounting hardware operate in high-temperature, high-vibration environments where fatigue resistance directly impacts engine reliability.
Fastener Holes and Fillet Radii
Stress concentrations at holes and fillets amplify applied loads by a significant amount. Shot peening these areas provides targeted protection at critical stress points.
Suspension and Control Components
Flight control actuators, hinge fittings, and pivot pins benefit from both fatigue resistance and fretting protection provided by shot peening.
Quality Control And Verification Methods For Shot Peening
Aerospace shot peening quality depends on verification methods that confirm process effectiveness.
Almen Strip Testing
Strips are exposed to the same process as production parts, removed, and measured with specialized gages. The measured Almen arc height must fall within the intensity range specified in the drawing, process specification, or customer requirement.
Coverage Inspection
Trained inspectors examine peened surfaces at 10x magnification and document coverage percentage. Any area receiving less than specified coverage is rejected or re-peened.
Media Condition Monitoring
Media degrades through use, affecting intensity and surface finish. Aerospace facilities conduct regular sieve analysis and hardness testing, replacing media before performance degrades.
Process Parameter Recording
Shot pressure, flow rate, nozzle distance, and exposure time are monitored and documented for every production lot, ensuring traceability and repeatability across production runs.
How Valence Supports Shot Peening Across Aerospace Manufacturing Programs
Valence Surface Technologies applies shot peening processes governed by strict specification controls, backed by Nadcap accreditation and full lot traceability. From process qualification through final documentation, Valence supports aviation, defense, and space programs with the technical consistency and compliance rigor fatigue-critical components require.
Our broader services, including anodizing and plating, complement our shot peening capabilities to deliver fully integrated surface finishing solutions under one roof. To find the facility nearest to your program, visit our valence surface tech locations page.
Final Thoughts
Shot peening remains one of aerospace manufacturing’s most effective methods for extending component fatigue life without adding weight, changing geometry, or increasing material costs. The process’s value lies not in its complexity but in its precise execution—adherence to specifications, consistent process control, and thorough verification.
Valence’s integrated approach consolidates shot peening with chemical processing, plating, and NDT under one Quality Management System, eliminating handoffs and ensuring program consistency. Our facilities are rate-ready and audit-ready, and are positioned to support both legacy platforms and next-generation aerospace programs that require certified surface finishing at scale.
Frequently Asked Questions About Shot Peening For Aerospace Components: Fatigue Life Extension, Specs, And Process Overview
What is “over-peening,” and why is it dangerous?
Over-peening occurs when excessive intensity or coverage creates surface damage, micro-cracking, or subsurface tensile stress that negates the beneficial compressive layer, potentially reducing fatigue life below baseline.
Can shot peening be applied to all aerospace alloys and materials?
Most structural metals benefit from shot peening, though beryllium-copper, certain magnesium alloys, and brittle materials may crack under peening forces, requiring alternative surface treatments.
What does “coverage” mean in a shot peening specification?
Coverage refers to 100% visual coverage unless otherwise specified; some applications require coverage greater than 100% to ensure no unprotected zones remain.
What types of shot media are used in aerospace applications?
Cast steel shot, conditioned cut wire, ceramic beads, and glass beads are standard, with selection based on component material hardness, geometry, and required compressive stress depth.
Can shot peening prevent stress corrosion cracking (SCC)?
Shot peening can reduce SCC susceptibility by introducing surface compressive residual stress, though it does not eliminate the need for proper material selection and corrosion protection systems.
What quality certifications should I look for in a shot peening supplier?
AS9100D certification, Nadcap accreditation for shot peening, and applicable OEM approvals demonstrate that a supplier has been audited against aerospace quality and process-control requirements.
