Within the dynamic realm of aerospace engineering, where precision, durability, and optimal performance are paramount, the ceaseless pursuit of innovation remains a guiding force. Amidst the array of transformative technologies that have revolutionized the industry, one process stands as a pinnacle of both scientific prowess and meticulous craftsmanship: titanium anodizing.
Titanium, renowned for its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility, has long held a distinguished position in the aerospace sector. However, it is the transformative power of anodizing that unveils a spectrum of untapped potential within this remarkable metal.
By carefully manipulating its surface characteristics through controlled electrochemical processes, engineers and scientists have unlocked an entirely new dimension of performance possibilities. In this guide, we will provide an overview of titanium anodizing and its applications in aerospace.
Unlock the boundless possibilities of titanium anodizing and discover its wide-ranging applications by reaching out to us today! Our team of experts is ready to assist you in exploring the immense potential of this remarkable process.
What Is Titanium Anodizing?
Titanium anodizing is a process used to increase the durability and corrosion resistance of titanium components. It also provides a range of color options to make the components more aesthetically pleasing.
The process involves passing an electric current through a titanium component in an electrolyte solution, which causes a thin oxide layer to form on the surface of the metal. This oxide layer is what gives titanium anodizing its improved properties and color options.
How Does It Work?
Anodizing titanium involves the electrochemical process of building up an oxide film on the surface of the metal. The type of anodization, whether it’s Type 1, 2, or 3, determines the specific characteristics of the oxide coating.
Type 1 anodizing typically results in a thin, semiconducting oxide layer. It is often used as a pre-treatment before extrusion and can also be employed for certain radiative or absorptive properties, particularly for thermal control purposes.
Type 2 anodizing produces thicker and tougher coatings compared to Type 1. These coatings generally enhance the wear properties of the titanium surface.
Type 3 anodizing is known for creating a thin, transparent oxide film. This film thickness can vary and can give the titanium part a false color.
Type 4 anodizing involves impregnating the surface oxide film with polytetrafluoroethylene (PTFE), commonly known as Teflon. This process creates a self-lubricating film on the titanium, which can provide beneficial properties in terms of reducing friction and enhancing wear resistance.1
Benefits Of Titanium Anodizing
Titanium anodizing process provides numerous benefits, making it highly advantageous in various industries. Here are some of the key benefits of titanium anodizing:
Reduced Friction And Increased Hardness, Minimizing Galling Risk
Titanium anodizing reduces galling risks through the provision of reduced friction and increased hardness in areas where parts are abraded. Galling refers to a type of wear that occurs when two surfaces slide against each other under pressure, resulting in material transfer, surface damage, and potential component failure.
During the anodizing process, a controlled oxidation of the titanium surface takes place, forming a layer of titanium dioxide (TiO2). This oxide layer possesses unique properties that contribute to the reduction of friction and increased hardness, thereby minimizing the risk of galling in areas where parts experience abrasion.
Improved Corrosion Resistance With Anodized Surfaces
Anodizing creates a controlled oxide layer on the surface of titanium through an electrochemical reaction, resulting in a highly durable and protective surface coating. The anodized layer offers several benefits, including improved corrosion resistance.
Corrosion is a destructive electrochemical process that can degrade the structural integrity and aesthetic appeal of metals.
Titanium, known for its exceptional corrosion resistance, naturally forms a protective oxide layer when exposed to oxygen. However, anodizing amplifies this protective mechanism by generating a thicker and more uniform oxide layer.
Biocompatibility For Low-Corrosion, Contaminant-Free Surfaces
This process enhances the surface characteristics of titanium, making it suitable for use in medical and aerospace applications. The anodized surface of titanium is non-toxic and non-irritating, making it suitable for use in contact with sensitive tissues or fluids.2
Anodizing endows titanium with exceptional corrosion resistance, empowering it to endure a wide array of chemical and mechanical stresses. Consequently, it emerges as an ideal material for components subjected to harsh and demanding conditions, prominently in aerospace applications.
Furthermore, the anodized surface of titanium assumes an electrically passive state, thereby mitigating the potential threat of galvanic corrosion.
Cost-Effective, Durable Coloring Options
The anodizing process provides a unique opportunity to enhance the visual appeal of titanium products, making them more aesthetically pleasing and suitable for a wide range of applications.
Compared to traditional methods of coloring metals, such as painting or plating, anodizing titanium can be a more economical solution. The anodizing process itself is relatively efficient, making it a cost-effective choice for manufacturers.

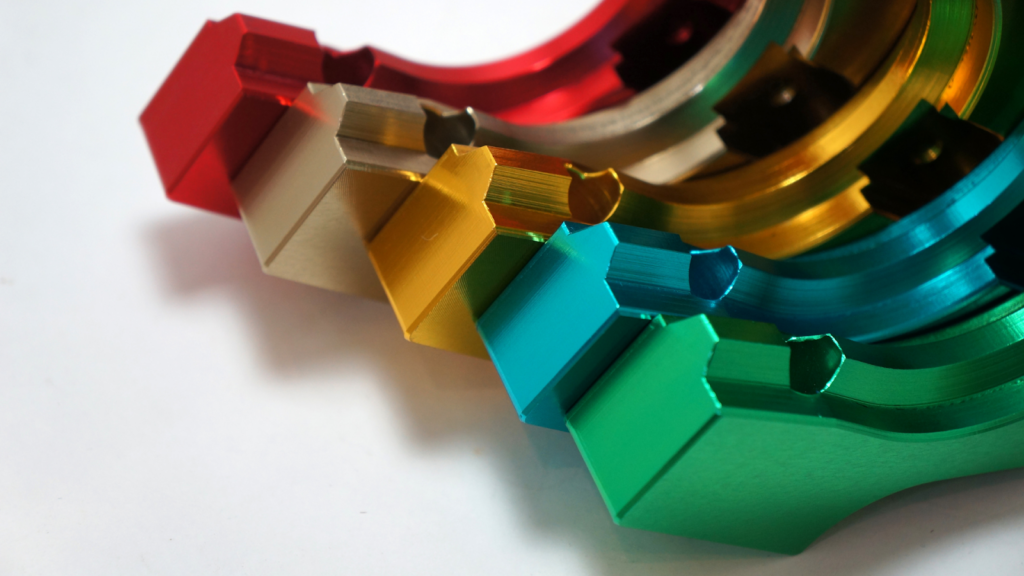

High Cosmetic Quality With A Wide Color Range
One of the significant benefits of titanium anodizing is the high cosmetic quality it provides, accompanied by a wide range of colors. This process enhances the appearance of titanium products, making them more visually appealing and aesthetically pleasing.
The color range available with titanium anodizing is virtually limitless, with options ranging from bright, vibrant colors to subtle hues. This allows for a wide range of creative options when designing components for aerospace applications.
Electrically Passive, Corrosion-Resistant Surface
When titanium undergoes anodizing, a controlled oxidation process takes place, resulting in the formation of a stable oxide layer on the surface. This layer acts as a protective barrier, shielding the underlying titanium from external factors that can cause corrosion. The oxide layer formed during anodizing is known to be dense, uniform, and tightly adherent to the titanium substrate, ensuring excellent corrosion resistance.
The electrically passive nature of the anodized titanium surface is also noteworthy. This means that the oxide layer acts as an insulator, preventing the flow of electrical current between the titanium and its surroundings.
Biocompatible Component Identification Without Dyes Or Colorants
The absence of dyes or colorants in titanium anodizing is particularly advantageous for biocompatible component identification. Dyes and colorants, often used in traditional marking or labeling processes, may introduce potential risks of allergic reactions or toxicity when in contact with biological environments.
Titanium anodizing eliminates these concerns by relying solely on the surface modification of the material itself, without the need for additional agents.
Applications Of Titanium Anodizing In Aerospace
The exceptional properties of titanium, including its lightweight strength, corrosion resistance, and high-temperature performance, have made it a highly favored material for a wide range of aerospace components.
One of the most significant advantages of titanium anodizing in aerospace lies in the remarkable improvement it brings to corrosion resistance. By subjecting titanium to anodizing, a dense and uniform oxide layer is created on its surface. This oxide layer acts as a formidable protective barrier against various environmental factors, such as moisture, aggressive chemicals, and other corrosive agents.
Considering the demanding and often harsh conditions that aerospace components face, including high humidity, saltwater exposure, and contact with corrosive fuels, the ability to mitigate the risk of corrosion is of paramount importance. Through anodizing, the longevity and reliability of critical aerospace parts are significantly enhanced, leading to increased safety and reduced maintenance costs.
Beyond its protective benefits, titanium anodizing also offers a creative avenue for aerospace design. The anodizing process allows for the introduction of vibrant colors onto the titanium surface, transforming the appearance of components.
Different Types Of Titanium Anodizing
There are three main types of titanium anodizing: Type 1, Type 2, and Type 3. Let’s take a comprehensive look at them.
Type 1: Anodized Titanium
One of the primary advantages of Type 1 anodizing is its ability to improve the metal’s resistance to high temperatures.
During the anodizing process, a thin and uniform layer of oxide is formed on the surface of the titanium. This oxide layer acts as a protective barrier, shielding the underlying metal from the effects of corrosion and oxidation. What sets Type 1 anodizing apart is its ability to maintain this protective barrier even when exposed to elevated temperatures.
Type 2: Anodized Titanium
The process of Type 2 anodizing toughens the surface of titanium, leading to increased resistance against corrosion and abrasion. Due to these superior properties, it is extensively employed in the production of aerospace parts. The resulting surface has a matte gray appearance and is more resistant to abrasion than the metal in its natural oxidized state.
Type 3: Titanium Anodizing
Type 3 titanium anodizing, often referred to as titanium color anodizing, is a popular process utilized for color coding and identification purposes. This method finds widespread use in various industries.
Although Type 3 titanium color anodizing is not as prevalent in the aerospace industry, it can play a crucial role in distinguishing components within complex assemblies. By applying colored titanium finishes through Type 3 anodizing, aerospace professionals can improve the visual identification of specific parts, streamlining maintenance, repairs, and inspections.
Materials Required For Titanium Anodization
To perform titanium anodization, you will need the following materials:
- Power Supply: A direct current (DC) power supply is necessary to provide the electrical current for the anodization process. A benchtop power supply with adjustable voltage and current settings is commonly used.
- Electrolyte Solution: An appropriate electrolyte solution, such as sulfuric acid (H2SO4), phosphoric acid (H3PO4), or a mixture of these acids, is required for the anodization process.
- Anodizing Tank or Container: You will need a non-reactive container or tank to hold the electrolyte solution and submerge the titanium parts.
- Cathode: A cathode made of a conductive material like stainless steel or titanium is needed to complete the electrical circuit during anodization.
- Wires: Proper electrical connections are crucial for the anodization process. You will need lead wires to connect the power supply to the titanium parts and the cathode.
- Safety Equipment: Wear appropriate personal protective equipment (PPE) such as gloves, safety goggles, and a lab coat or apron to protect yourself from potential chemical splashes or spills.
Steps For Titanium Anodizing Process
The process begins with thorough cleaning and preparation of the titanium surface, eliminating any traces of oils, grease, or contaminants that may hinder the anodizing process.
Once the surface is clean, the titanium undergoes an etching process. This step involves creating a roughened surface texture to facilitate optimal adherence of the anodizing solution to the titanium. The resulting rough surface enhances the bonding between the titanium and the subsequent layers.
Next, the prepared titanium is immersed into the anodizing solution, typically comprising a combination of sulfuric acid, water, and other specialized additives.
After the anodizing process is complete, the titanium undergoes a meticulous rinsing procedure to eliminate any excess solution lingering on the surface.
Valence: Setting The Standard In Titanium Anodizing
At Valence Surface Technologies, we take immense pride in revolutionizing the world of titanium anodizing and chemical processing. With our complete suite of Nadcap and AS9100-approved services, we have set the standard for excellence and innovation in the industry.
One of our core areas of expertise lies in titanium anodizing, where we unlock the extraordinary properties of titanium to enhance its performance across various industries.
Our meticulous attention to detail results in unparalleled corrosion resistance, increased durability, and captivating aesthetic finishes. Whether it’s aerospace, medical, aviation, defense, we empower you to leverage the full potential of titanium in your products.
Final Thoughts
As the aerospace industry continues to push boundaries in terms of performance, efficiency, and safety, titanium anodizing remains an indispensable process. Its ability to enhance the properties of titanium and extend the lifespan of critical components ensures the aerospace sector can operate at the forefront of technological advancements.
Experience the Valence difference and elevate your aerospace chemical processing to new heights. Valence specializes in processing various alloys, including aluminum, steel, titanium, and nickel-based alloys. Each alloy is carefully composed to optimize toughness, corrosion resistance, and ductility, ensuring exceptional performance.
Contact us today with any questions about our process or request a quote to get started.
Discover more by delving into our extensive collection of blogs:
- Top Surface Finishing Applications In Aerospace
- A Bright Future: Exploring The Benefits Of Gold Plating In Aerospace
- Anodizing Aluminum For Aerospace Applications: A Comprehensive Guide
FAQs
How long does anodizing on titanium last?
With proper care and maintenance, anodizing on titanium can last for many years. However, it is worth noting that harsh conditions, exposure to abrasive materials, or frequent mechanical stress can potentially impact the longevity of the anodized coating.
Why does anodized titanium change color?
The phenomenon of color change in anodized titanium is due to the interference of light caused by the controlled formation of a thin oxide layer on the metal’s surface during the anodizing process. When titanium undergoes anodization, an electrical current is applied in an electrolytic bath, resulting in the formation of a layer of titanium oxide.
Is anodizing titanium safe?
Anodizing titanium is a safe process that produces no hazardous byproducts. The process is non-toxic and does not involve any hazardous chemicals, making it a safe option for use in aerospace and medical applications.
How strong is anodized titanium?
While anodization does not directly affect the inherent strength of titanium, it can enhance certain surface properties. The oxide layer formed during anodization typically increases the surface hardness and scratch resistance of titanium, making it more resistant to wear and abrasion.
Does anodized titanium rust?
Anodized titanium is highly resistant to rust and corrosion. The formation of a well-integrated and tough oxide film during the anodizing process provides excellent protection against corrosion.
How durable is anodizing?
Anodizing is a highly durable surface treatment that significantly enhances the durability and longevity of various metals, particularly aluminum, and titanium. The anodizing process creates a thick and robust oxide layer on the surface of the metal, which provides excellent resistance to wear, scratches, and corrosion.
Does heat remove anodizing?
Heat alone does not typically remove anodizing from a surface. Anodizing creates a durable and stable oxide layer on a metal, which is highly resistant to heat. However, prolonged exposure to very high temperatures or extreme heat sources can potentially affect the appearance or integrity of the anodized coating.
