What Are Thermal Control Coatings (TCC) For Satellites?

by | Jul 26, 2023

As satellites venture through the unforgiving expanse of space, they face a formidable challenge: the extreme temperatures that fluctuate between scorching heat and icy cold. To conquer this cosmic thermal battleground, satellites enlist the aid of a remarkable ally: thermal control coatings (TCCs).

Thermal control coatings play a crucial role in maintaining optimal temperature levels for satellites, ensuring their reliable performance in the harsh conditions of outer space. These specialized coatings are designed to provide effective insulation and heat dissipation, safeguarding sensitive satellite components from extreme temperature fluctuations.

In this article, we will delve into the various aspects of thermal control coatings for satellites, including types, functions, properties, design considerations, application methods, and performance evaluation. Whether you are a company in the commercial aerospace, defense, space, or satellite industries, seeking top-of-the-line surface finishing solutions, this comprehensive guide will help you understand the essentials of thermal control coatings.

Valence Surface Technologies stands at the forefront of delivering exceptional finishes for components used in the space and satellite industries. With a diverse range of processes that include electroless nickel, gold and silver plating, and more, Valence ensures that each application is executed with meticulous precision.

If you seek nothing less than the utmost expertise and craftsmanship for your next project, reach out to us today. Request a quote and experience the difference firsthand.



What Are Thermal Control Coatings For Satellites?

Thermal control coatings for satellites are specialized coatings applied to the surfaces of satellite components to manage and regulate temperature. These coatings serve a crucial role in protecting sensitive satellite equipment from the extreme thermal conditions encountered in space.

Thermal control coatings are designed to exhibit specific thermal properties, such as high or low thermal emissivity, to either enhance or reduce the absorption and dissipation of heat. They are engineered to reflect or radiate thermal energy, helping to maintain a stable temperature range within the satellite and preventing overheating or excessive cooling.



What Are Thermal Control Coatings For Satellites?



How Do Thermal Control Coatings For Satellites Work?

Thermal control coatings are specifically designed to regulate and manage the temperature of satellites operating in space. These coatings are applied to the exterior surfaces of the satellite to shield it from the extreme heat conditions.

The primary purpose of the coating is to deflect, absorb, or radiate heat away from the satellite, thereby maintaining a stable temperature within its sensitive components. By effectively managing heat, the thermal control coating protects the satellite from overheating and ensures optimal performance and longevity.



Types of Thermal Control Coatings

Let’s explore a selection of commonly used thermal control coatings for satellites, each playing a vital role in safeguarding sensitive components and optimizing performance in the extraterrestrial realm.



White Paint Coatings

These coatings, typically based on white pigments like titanium dioxide, are applied to satellite surfaces to provide high reflectivity. They reflect a significant portion of solar radiation, reducing heat absorption and helping to maintain lower temperatures. To offer the best defense against solar radiation, this kind of coating is often used in combination with other temperature control coatings.



Black Paint Coatings

One of the commonly used types of thermal control coatings for satellites is black paint coatings. These coatings are designed to have a high absorbance of solar radiation, allowing them to efficiently absorb and dissipate heat from the satellite’s surfaces. By absorbing sunlight, black paint coatings help prevent overheating of critical components and maintain optimal temperature levels.



Multi-Layer Insulation (MLI)

MLI is a lightweight and efficient coating designed to minimize heat transfer through radiation. It consists of multiple layers of low-emissivity (low-heat-radiating) materials separated by thin spacers. These layers reflect and trap thermal radiation, creating a barrier that reduces heat transfer between the satellite and its surrounding environment.



Metallic Coatings

The primary purpose of these coatings is to deflect heat away from the satellite and safeguard it from the extreme temperatures encountered in space. Typically, they are applied to the outer surfaces of the satellite, creating a resilient shield that effectively counteracts the adverse effects of harsh thermal conditions.



What Are The Benefits Of Thermal Control Coatings For Satellites?

Thermal control coatings for satellites offer several benefits that are essential for the successful operation of spacecraft in the demanding conditions of space:



Enhanced Efficiency

Thermal control coatings enable satellites to manage their temperatures, resulting in improved performance. These coatings effectively maintain stable internal temperatures, preventing overheating and its detrimental effects on energy consumption and operational capabilities.



Component Protection

Thermal control coatings provide a protective barrier for satellite components against the extreme thermal conditions in space. By managing temperature, they safeguard sensitive electronics, instruments, and other critical parts from thermal stress, potential damage, or failure caused by rapid temperature fluctuations, thermal gradients, or excessive heat buildup.



Enhanced Performance

These coatings effectively manage heat, thereby reducing thermal stress on materials, preventing thermal expansion or contraction, and averting the harmful consequences of thermal cycling, such as structural damage or performance decline.



Cost-Saving

Maintaining the satellite within its optimal temperature range not only ensures its proper functioning but also minimizes the energy required to operate it. As a result, thermal control coatings play a crucial role in enhancing cost efficiency in satellite operations.



Mission Reliability

Thermal control coatings contribute to mission success by mitigating temperature-related risks, enhancing the overall reliability and functionality of satellites throughout their operational lifespan.



Benefits of thermal control coatings



Function And Properties Of Thermal Control Coatings

It is crucial to comprehend the functions and properties to make the right choice when selecting a coating system. Let’s take a closer look at them:



Function Of Thermal Control Coatings

  • Temperature Regulation: Thermal control coatings help maintain a stable temperature range within satellites, preventing overheating or freezing of vital components.
  • Solar Radiation Management: Coatings with high reflectivity or absorptivity control the amount of solar radiation absorbed or emitted by the satellite, ensuring optimal thermal balance.
  • Heat Dissipation: Coatings with good thermal conductivity assist in dissipating heat generated by electronic components or propulsion systems.
  • Protection From Extreme Environments: Thermal control coatings provide a protective layer against the extreme temperature variations and radiation encountered in space.



Properties Of Thermal Control Coatings

  • Reflectivity: The ability of a coating to reflect solar radiation.
  • Absorptivity: The capability of a coating to absorb solar radiation.
  • Thermal Conductivity: The measure of a coating’s ability to conduct heat.
  • Emissivity: The ability of a coating to emit thermal radiation.
  • Adhesion: The strength of bonding between the coating and the substrate.
  • Durability: The coating’s resistance to degradation caused by exposure to space conditions.



Design Considerations For Satellite Thermal Control Coatings

To achieve optimal performance and durability in thermal control coatings for satellites, it is crucial to take into account various factors during the design process. Let’s explore the key considerations that should be kept in mind:



Material Selection

Materials with high thermal conductivity can efficiently distribute heat, while low emissivity coatings can minimize heat radiation. Reflective coatings can help redirect solar radiation away from the satellite, reducing heat absorption.



Coating Thickness

The thickness of the coating directly influences the satellite’s thermal properties and overall performance. If the coating is too thin, it may fail to provide sufficient insulation or efficient heat dissipation. On the other hand, an excessively thick coating can add unnecessary weight and potentially compromise the satellite’s design and stability.



Coating Placement

By carefully selecting the areas to be coated, such as the exterior surfaces or sensitive internal components, engineers can ensure efficient heat dissipation, insulation, and protection against extreme temperatures. The geometry, materials, and thermal requirements of each component must be thoroughly analyzed to determine the ideal placement of thermal control coatings.



Integration With Other Satellite Systems

To ensure the best performance and reliability of the satellite in space, it is crucial that the thermal control coating seamlessly integrates with the overall satellite design. This entails evaluating various factors such as the coating’s thickness, weight, and surface properties. It is important to carefully consider these aspects to avoid any interference with critical systems like solar panels, antennas, or optical instruments.



Application Methods For Thermal Control Coatings

The application of thermal control coatings involves specific techniques to achieve uniform coverage and consistent performance. Here are some common application methods:

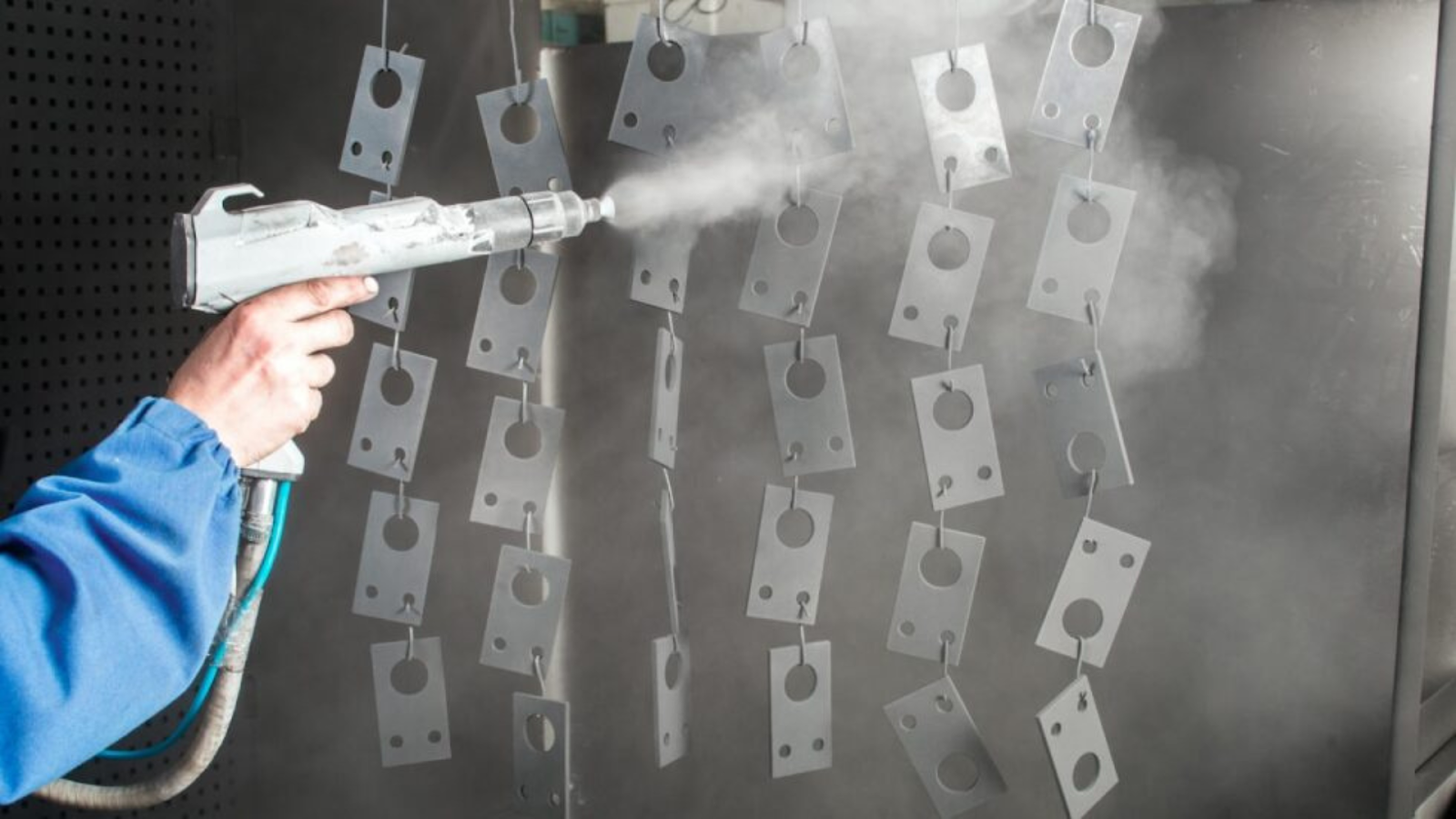

Spray Coating

In spray coating, a coating material is atomized into fine droplets and sprayed onto the satellite’s surface using techniques such as air spraying or electrostatic spraying. This method allows for larger area coverage and can be used with various coating materials.



Dip Coating

Dip coating involves immersing the satellite’s components into a solution or suspension containing the coating material. The components are then withdrawn, and excess coating is removed to achieve the desired thickness.



Electroplating/Electroless Plating

These methods involve the electrodeposition of a metal coating on the satellite’s surface. Electroplating uses an electric current to deposit the coating material, while electroless plating relies on chemical reactions for deposition. These methods are commonly used for coatings like nickel, copper, or gold.

Check out: Best Practices For Electroplating In Aerospace Applications



Spin Coating

Spin coating is a technique commonly used for applying thin films of thermal control coatings. The satellite component is placed on a spinning platform, and the coating material is dispensed onto the surface. As the component spins, the centrifugal force spreads the coating material evenly, resulting in a uniform layer.



Performance Evaluation And Testing Of Thermal Control Coatings

In order to guarantee the efficiency and dependability of thermal control coatings used in satellite applications, thorough evaluation and testing are carried out. The following outlines the essential components of this procedure:



Thermal Cycling Tests

Coated samples are subjected to repeated cycles of extreme temperature variations to simulate the thermal conditions experienced during a satellite’s mission. This helps evaluate the coating’s ability to withstand temperature fluctuations without degradation or loss of performance.



Thermal Shock Testing

Coated samples are rapidly subjected to extreme temperature changes, simulating sudden temperature shifts that can occur in space. This test evaluates the coating’s resistance to thermal shock, ensuring it can withstand rapid temperature transitions without cracking, delamination, or other forms of damage.



Emissivity Testing

The emissivity of the coating is measured to assess its ability to radiate heat effectively. This involves quantifying the coating’s ability to emit thermal energy and its capacity to maintain the desired heat dissipation characteristics.



Adhesion And Bonding Strength Tests

Adhesion and bonding strength tests determine the integrity of the bond between the thermal control coating and the substrate. These tests ensure that the coating will remain securely attached during launch, orbital maneuvers, and prolonged exposure to the space environment.



What Are The Alternatives To Thermal Control Coatings For Satellites?

While thermal control coatings are commonly used in satellite applications, there are alternative methods for thermal management. Here are a few examples:



Active Cooling Systems

Active cooling systems involve the use of mechanisms, such as heat pipes, radiators, or cooling fluids to actively remove heat from satellite components. These systems require power and may add complexity to the satellite design.



Radiators

Radiators are typically composed of thermally conductive materials, such as aluminum, and are designed to maximize radiative heat transfer to space. Radiators allow for efficient thermal dissipation and can be strategically positioned to regulate temperature in specific areas.



Thermoelectric Devices

Thermoelectric devices, such as thermoelectric coolers (TECs), can actively cool specific components by utilizing the Peltier effect. TECs can transfer heat from one side of the device to the other, effectively managing temperature.1



Final Thoughts

Thermal control coatings are vital for ensuring the dependable and efficient functioning of satellites in the demanding conditions of outer space. These specialized coatings serve multiple purposes: regulating temperature, safeguarding delicate components, and optimizing energy usage.

Through their ability to deflect, absorb, or radiate heat, TCCs contribute to maintaining the satellite within its ideal temperature range, reducing the likelihood of thermal stress, performance decline, or system failure.

As a leading provider in the aerospace industry, Valence Surface Technologies understands the importance of high-quality thermal control coatings. With our ten strategically positioned facilities spread across the United States, Valence offers end-to-end solutions, encompassing everything from non-destructive testing and chemical processing to painting and sub-assembly. Contact us today to learn how Valence can support your satellite thermal control coating needs and help maximize the performance of your aerospace systems.

To explore more intriguing subjects, we recommend delving into the following blogs:



Frequently Asked Questions

Can thermal control coatings be customized for specific satellite missions?

Yes, thermal control coatings can be customized for specific satellite missions. Thermal control coatings are designed to manage the temperature of a satellite’s components and subsystems in the harsh conditions of space. They help regulate the heat generated by electronics, protect sensitive components from extreme temperatures, and ensure optimal performance and longevity of the satellite.



How long do thermal control coatings typically last on satellites?

The expected lifespan of the coatings can vary from a few years to over a decade, depending on the mission’s duration and the durability of the coating materials.



Can thermal control coatings be repaired or reapplied in space?

Repairing or reapplying thermal control coatings in space is a complex task and generally not a common practice. Thermal control coatings are typically applied during the manufacturing and assembly of the satellite on Earth. The coatings are carefully designed, tested, and applied to specific surfaces before launch.



Can thermal control coatings be used in other industries besides satellites?

Yes, thermal control coatings find applications beyond satellites, including commercial aerospace, defense, and other space-related industries, where temperature regulation is crucial.



How can I choose the right thermal control coating for my satellite project?

Choosing the right thermal control coating involves considering factors such as mission requirements, materials, performance characteristics, and compatibility with other satellite systems. Consulting with industry experts is recommended.
